HU6 - TANK
Model:
HU6
Origin:
CKD
Weight:
15.6T
Listed price:
Contact
Information

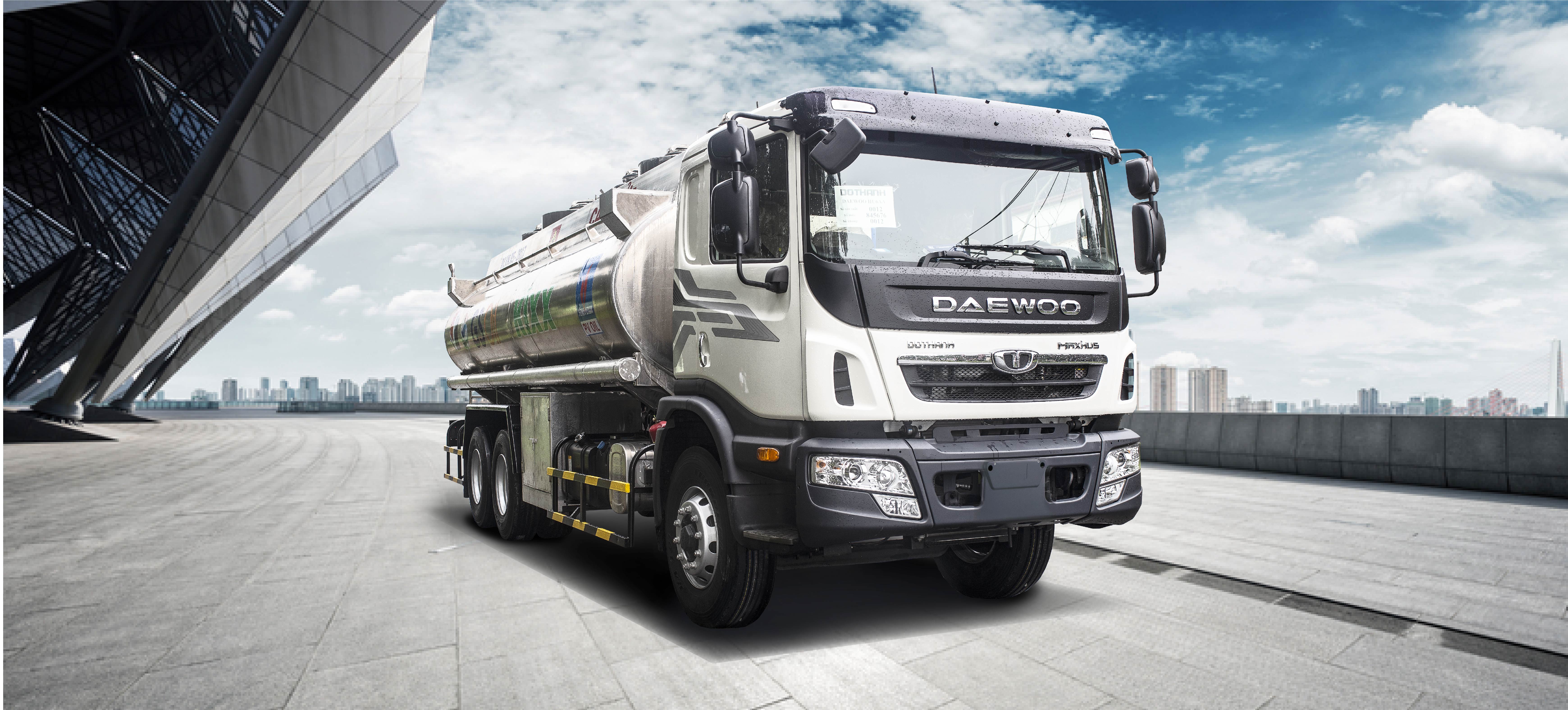

HU6 - TANK
(PS/RPM)
Daewoo Maximus HU6 - TANK meets Euro 5 emission standards, is assembled on modern lines, synchronously imported components from Daewoo Korea. Powerful engine, high performance, durable safety, large payload, fuel-saving, comfortable - modern design.

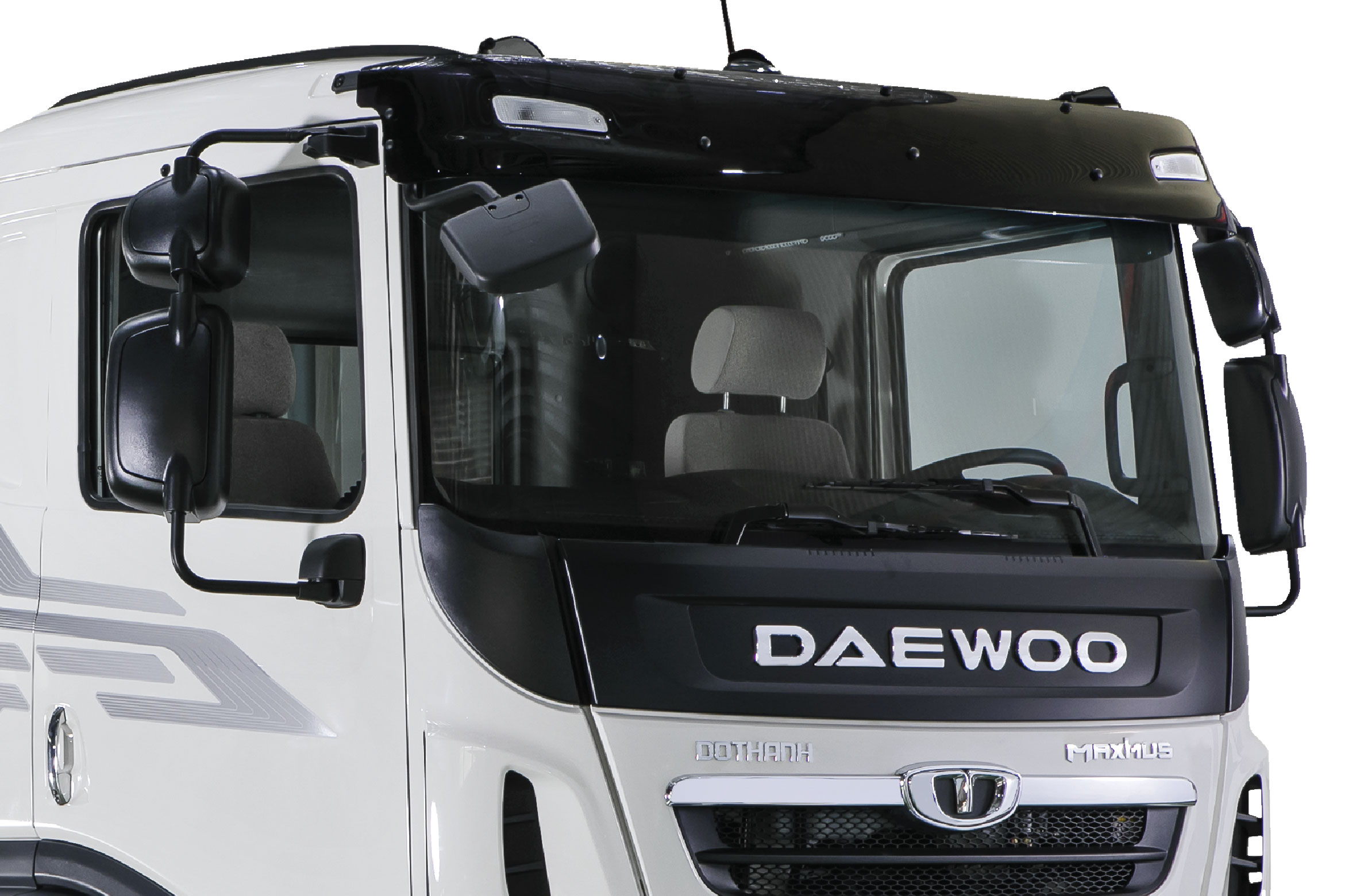

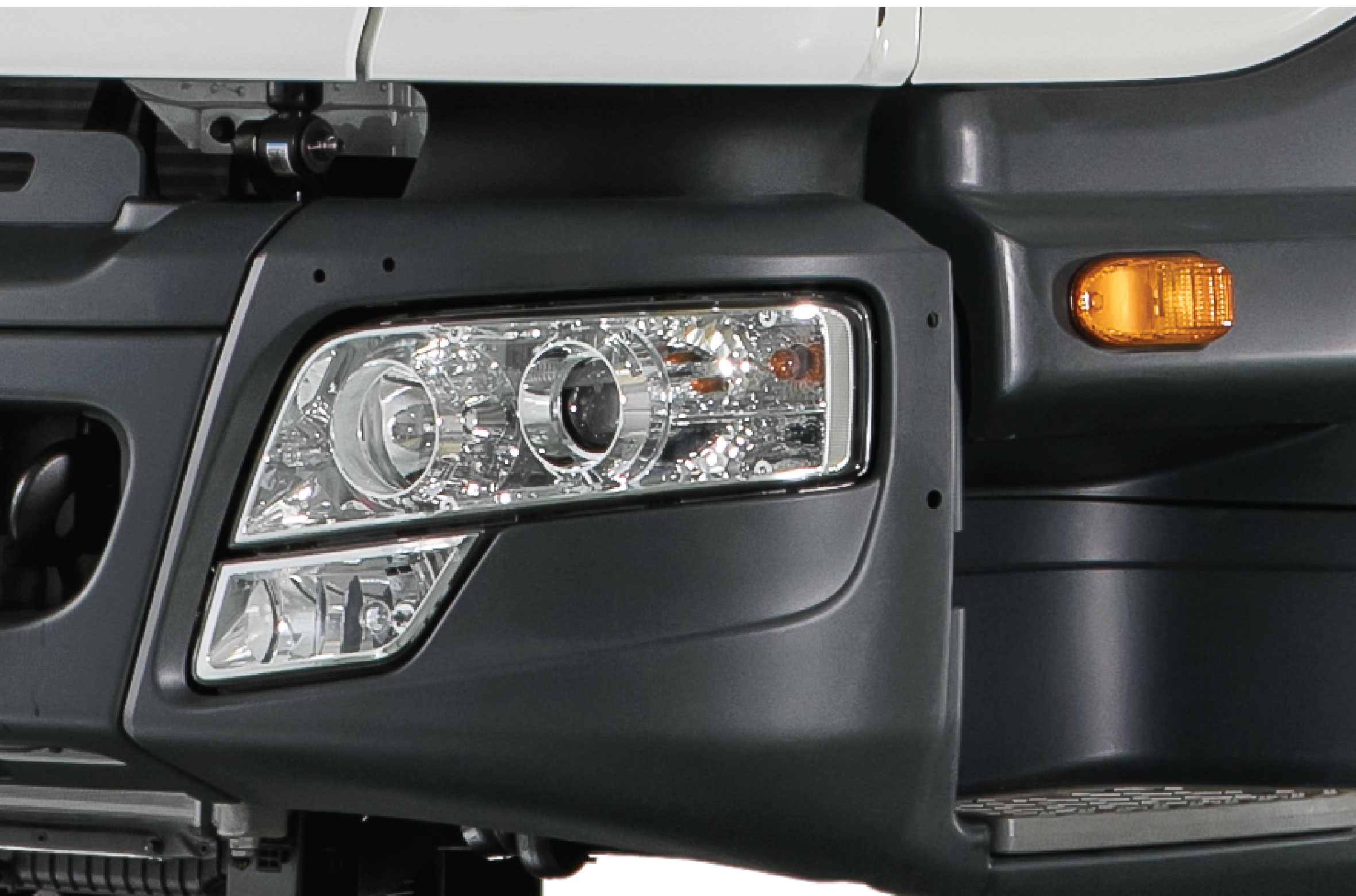

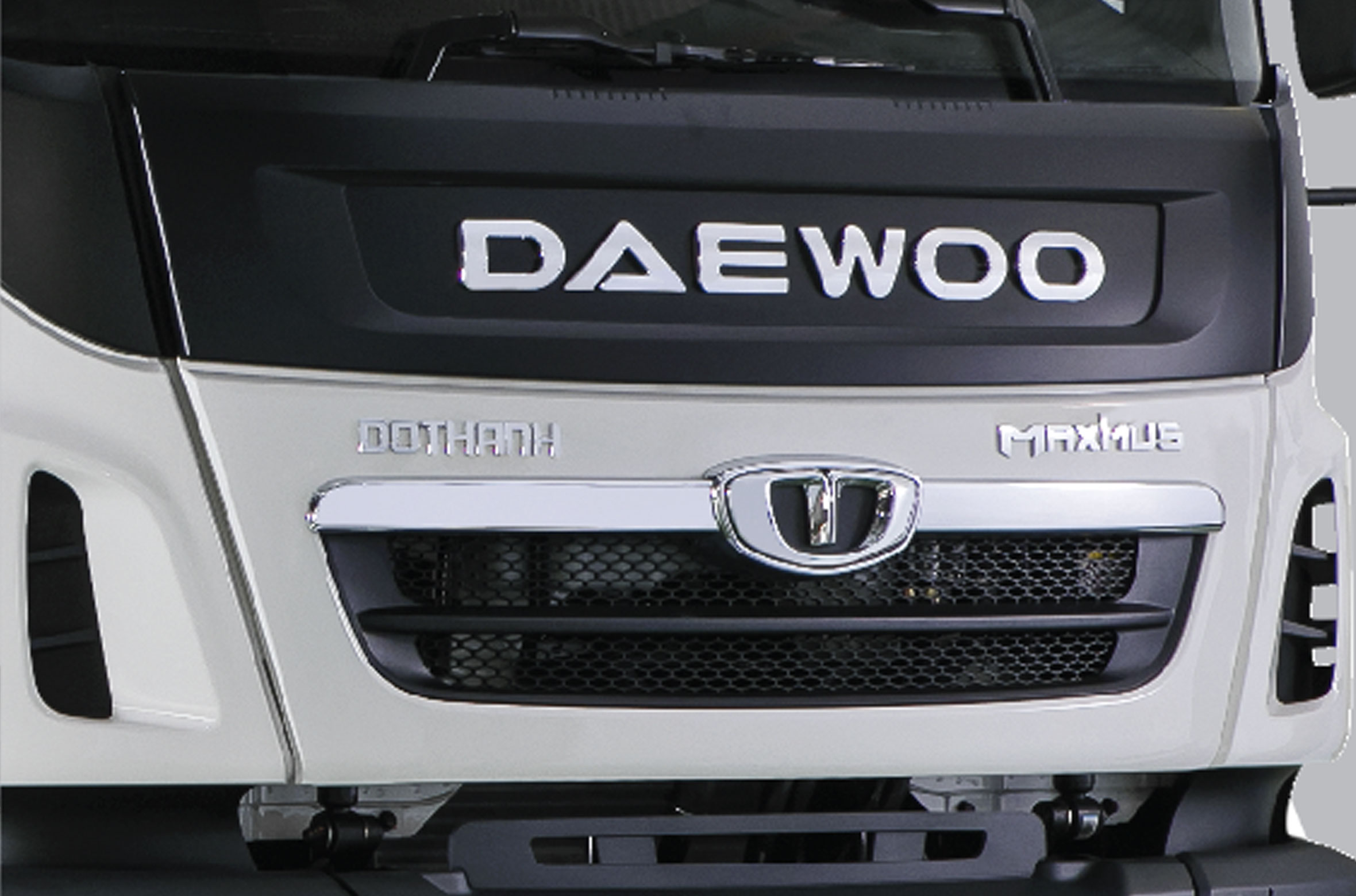

Exterior

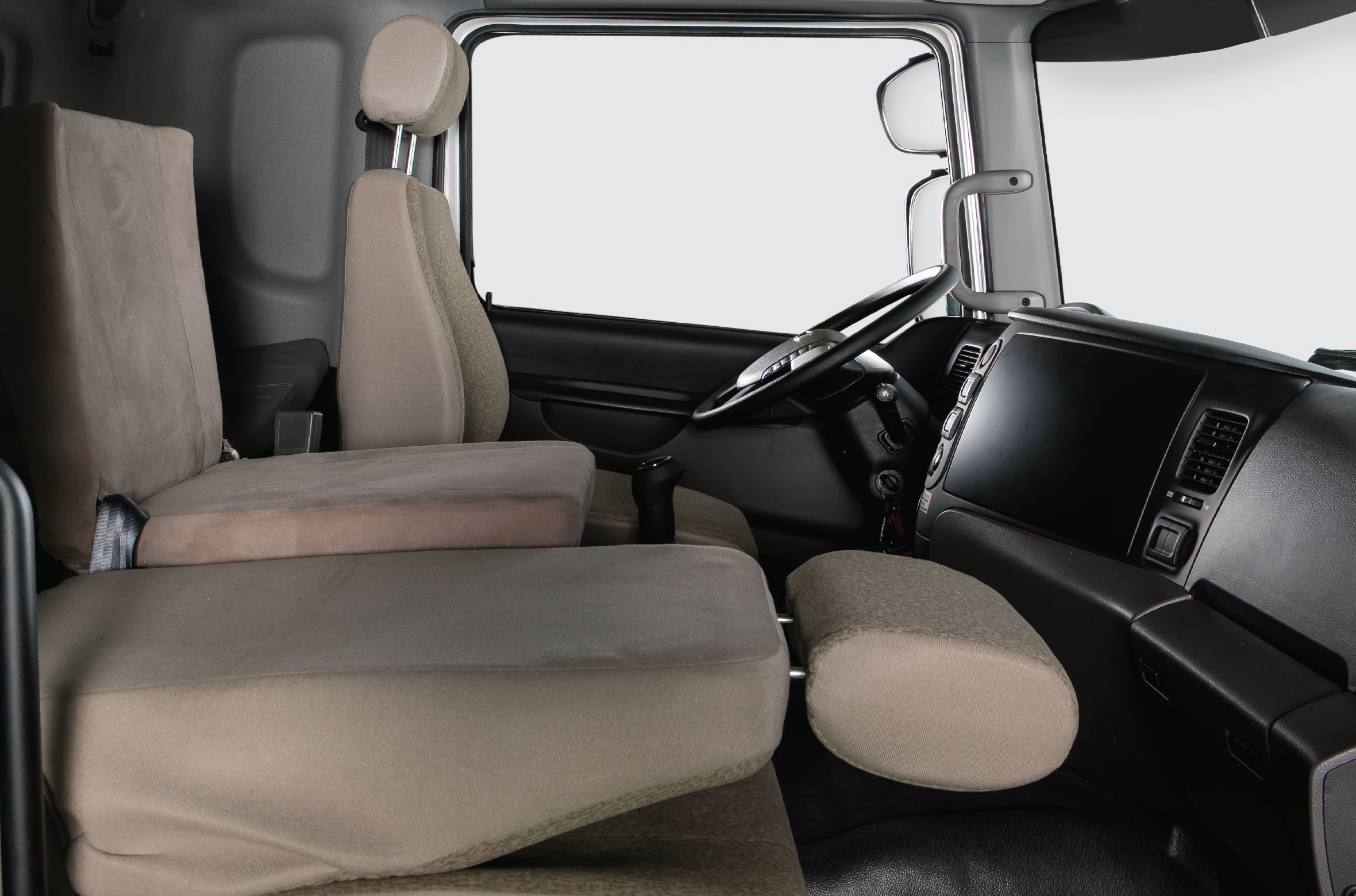

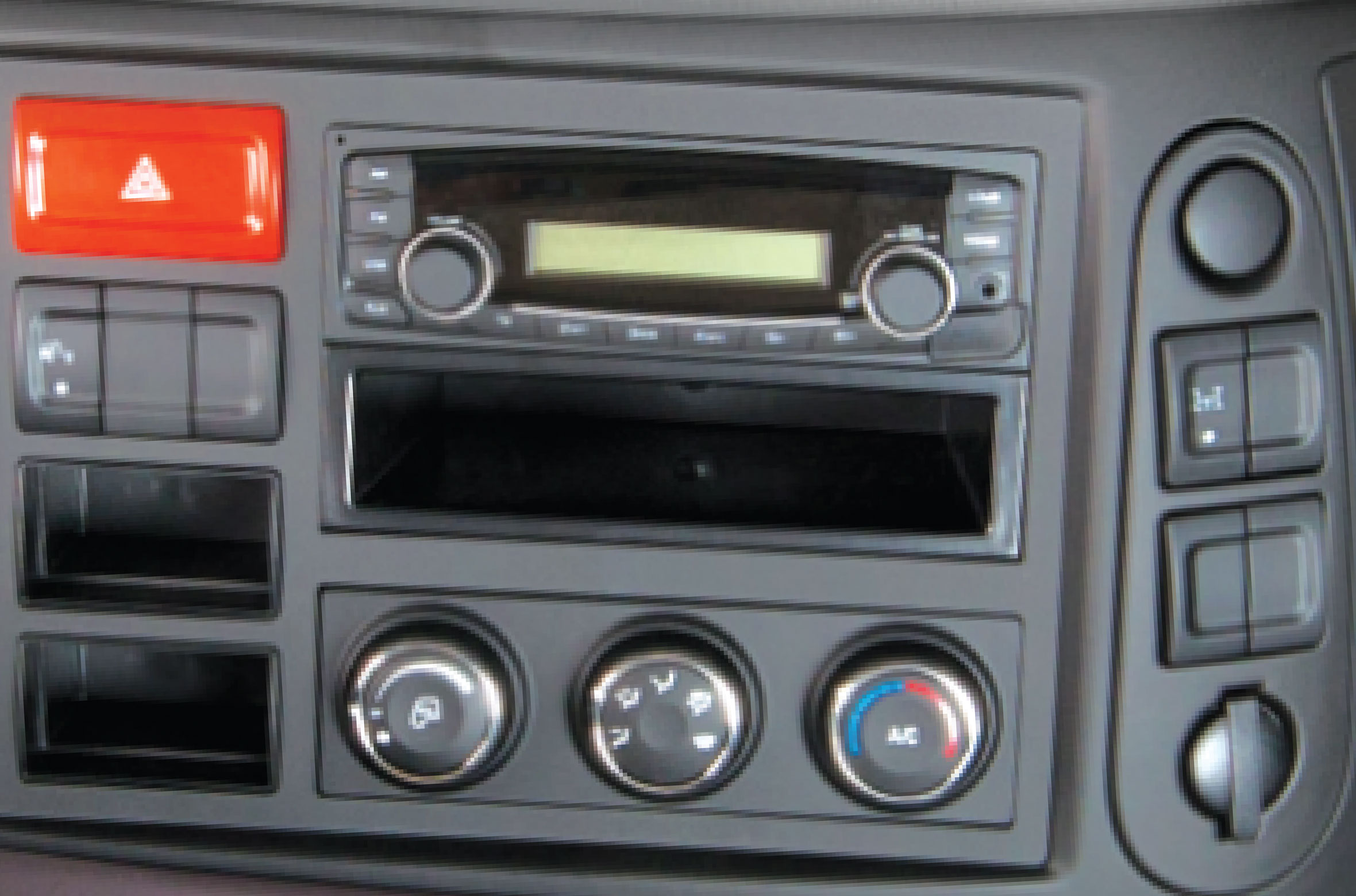

Furniture
Efficiency
Technical specifications
| MODEL | DAEWOO hu6 - tank |
| WEIGHT (kg) | |
| Gross Vehicles Weight | 24,000 |
| Payload | 17,150 |
| Curb Weight | 6.850 |
| Seating | 3 |
| Fuel tank (L) | 200 |
| DIMENSION (mm) | |
| Overall: LxWxH | 9.940 x 2.465 x 2.975 |
| Dimensions of Inner Cargo Body: LxWxH/TC (mm) | 7.180/6.860 x 2.470 x 1.560 |
| Wheelbase | 4.670 + 1.300 |
| Front axle wheelbase/rear axle wheelbase | 1.935/1.845 |
| Ground clearance | 280 |
| ENGINE - TRANSMISSION | |

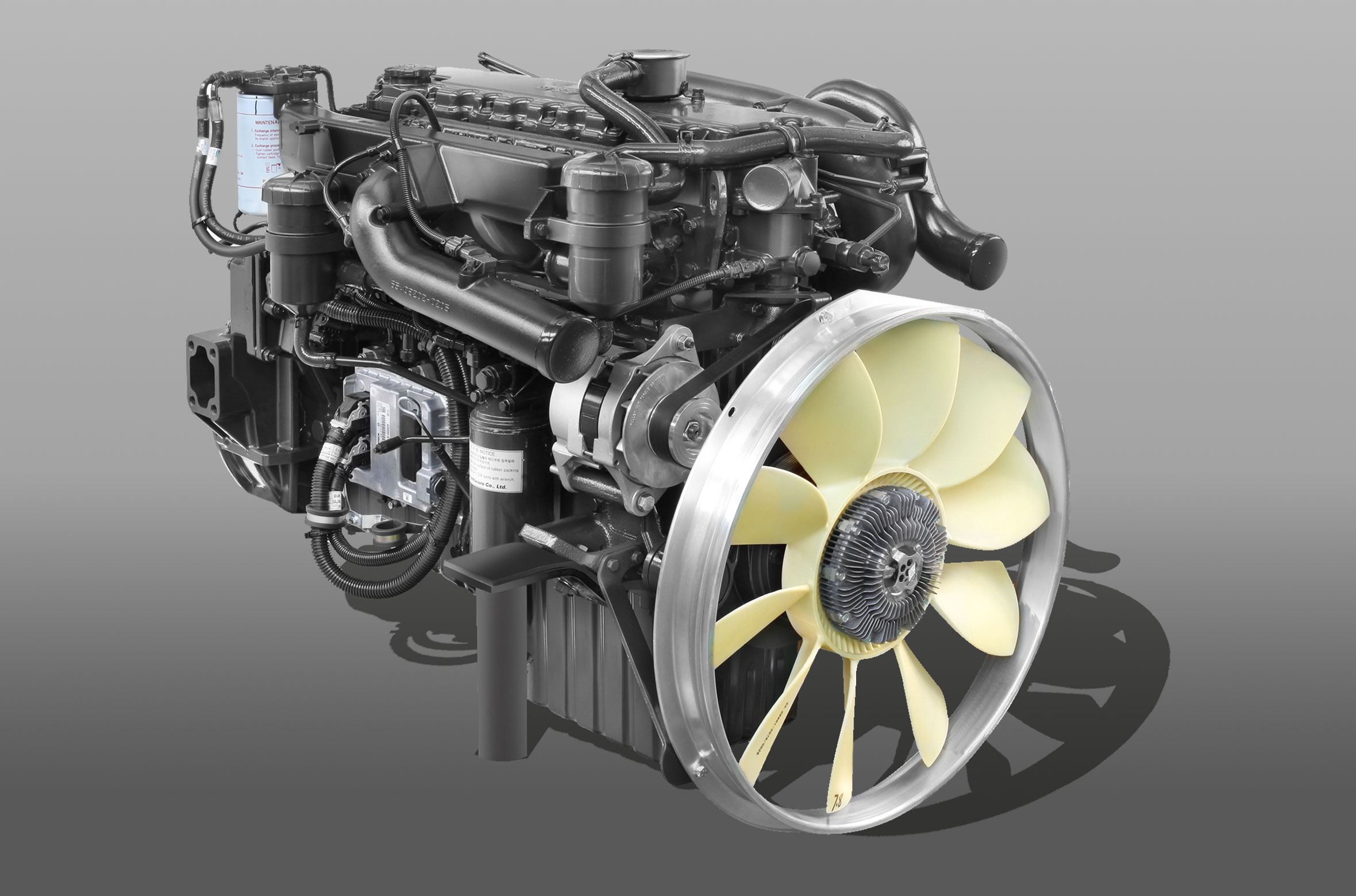

| Model | Doosan DL06K |
| Type | 4 stroke, 6 cylinders in line, turbocharged, water - cooled |
| Displacement (cc) | 5,890 |
| Max power (PS/rpm) | 280/2.500 |
| Max torque (N.m/rpm) | 981/1.400 |
| Transmission | 9S 1110 TO, manual, 9 forward gear + 1 reverse gear |
| Tire/Wheels formula | 11.00-20 |
| BRAKE SYSTEM | |

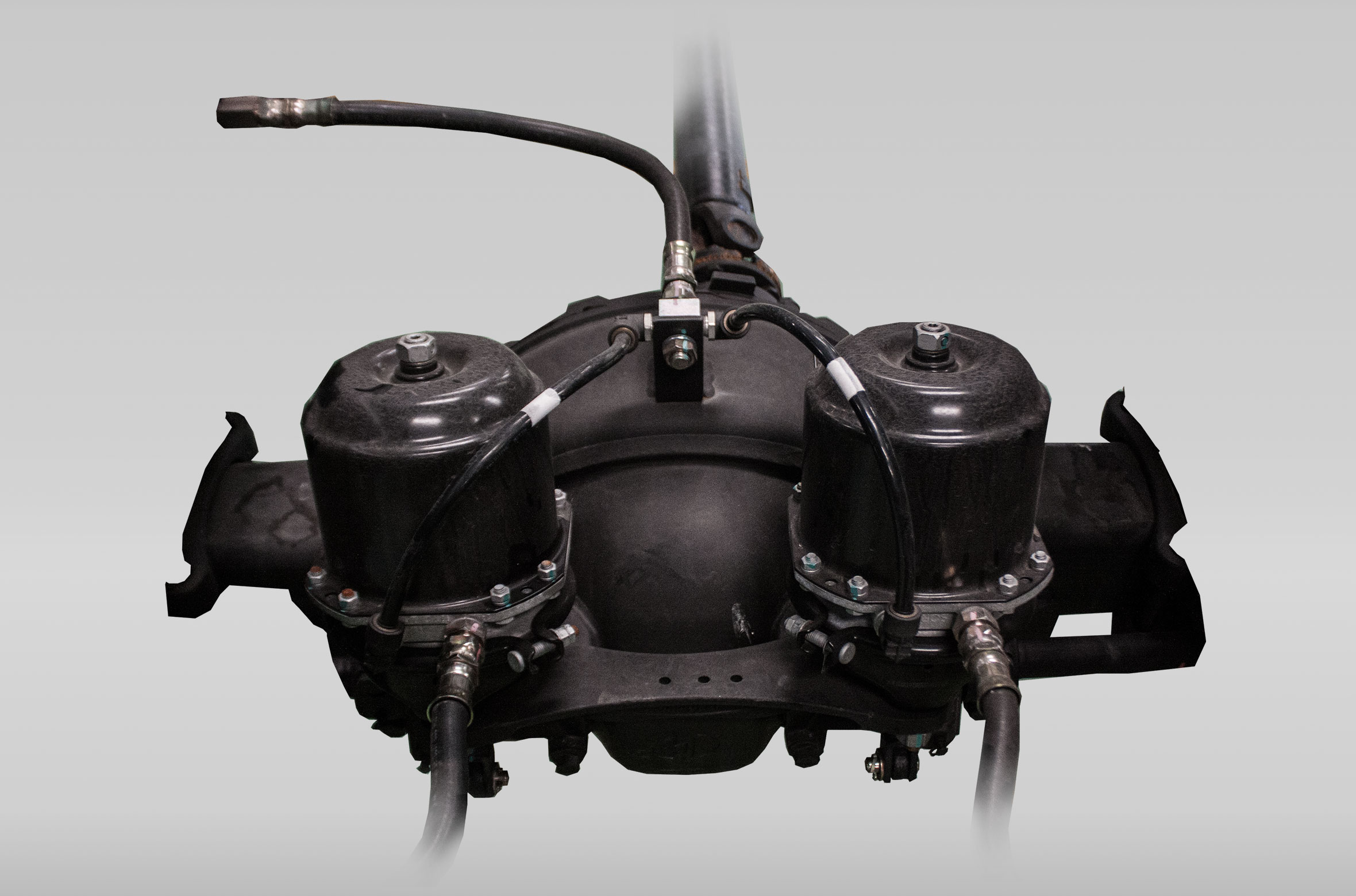

| Brake | Drum brake Full air, dual circuit |
| Parking brake | Air operated spring brake acting on 1st and 2nd rear axle |

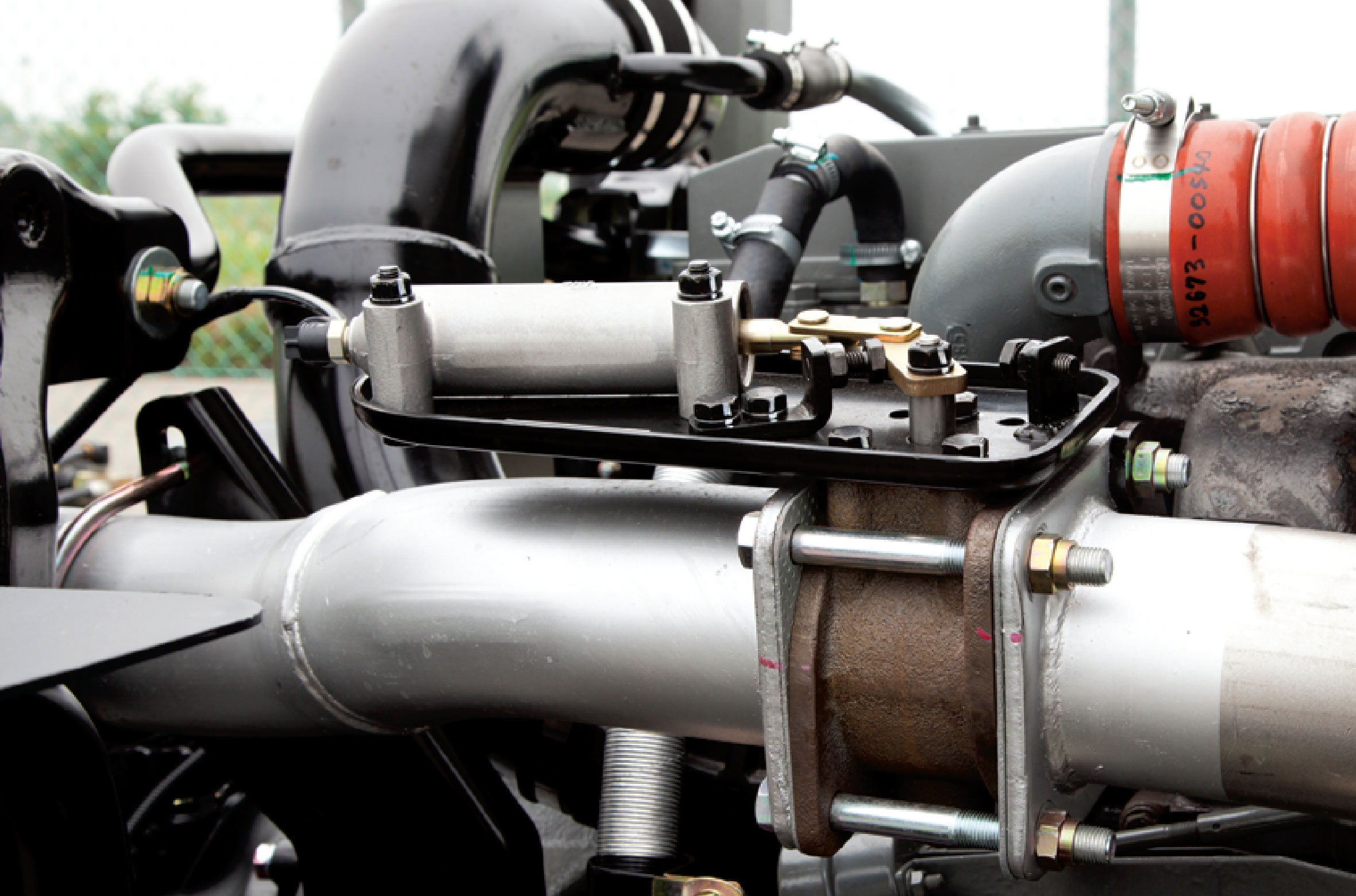

| Auxiliary brake | Exhaust Brake |
| PERFORMANCE | |
| Max gradability (%) | 23.8 |
| Max speed (km/h) |
90 |
| Smallest rotation radius (m) | 6.2 |
| TANK SPECIFICATIONS | |

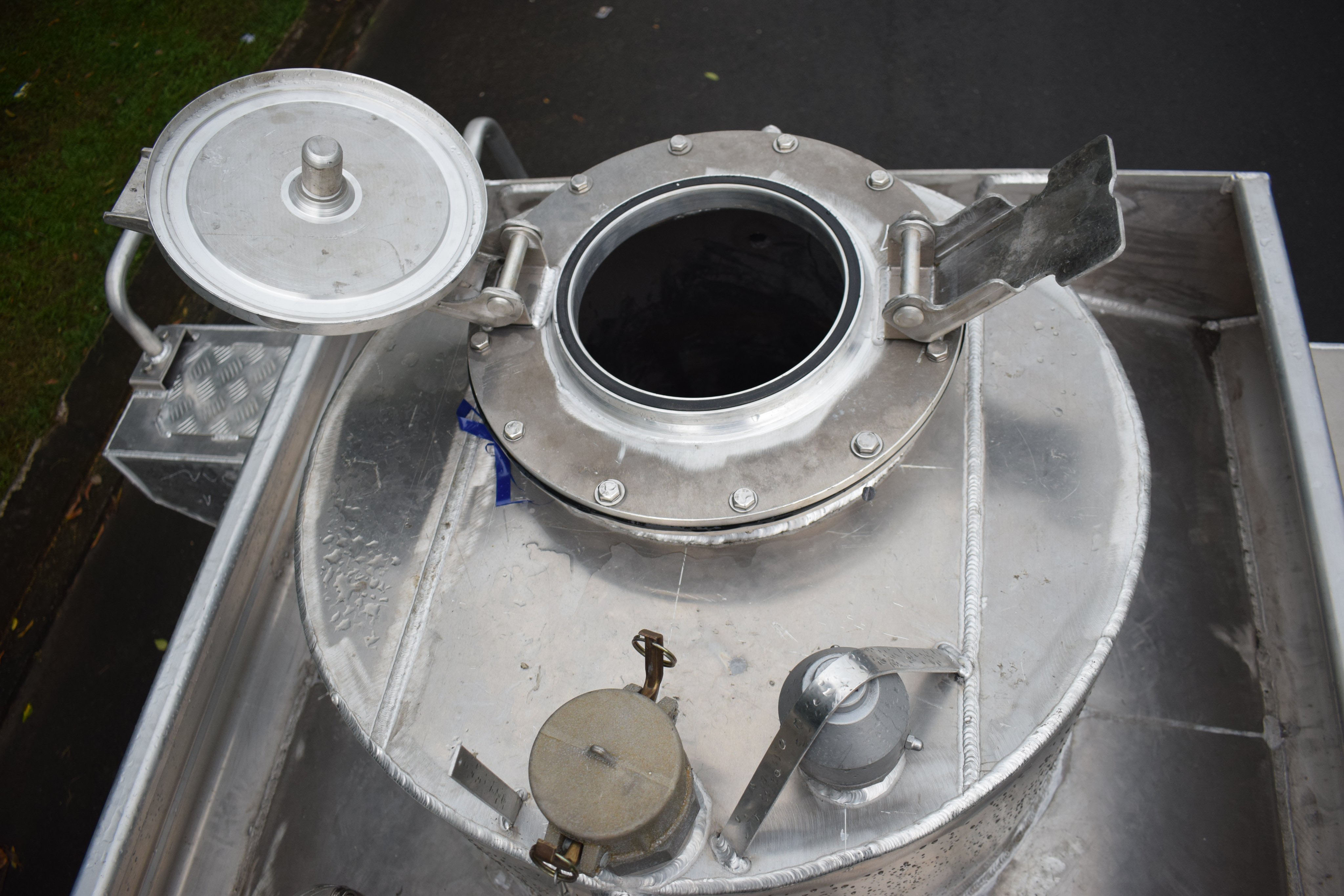

| Tank capacity | 21.000 L |
| Số ngăn | 05 (4/4/5/5/3) |

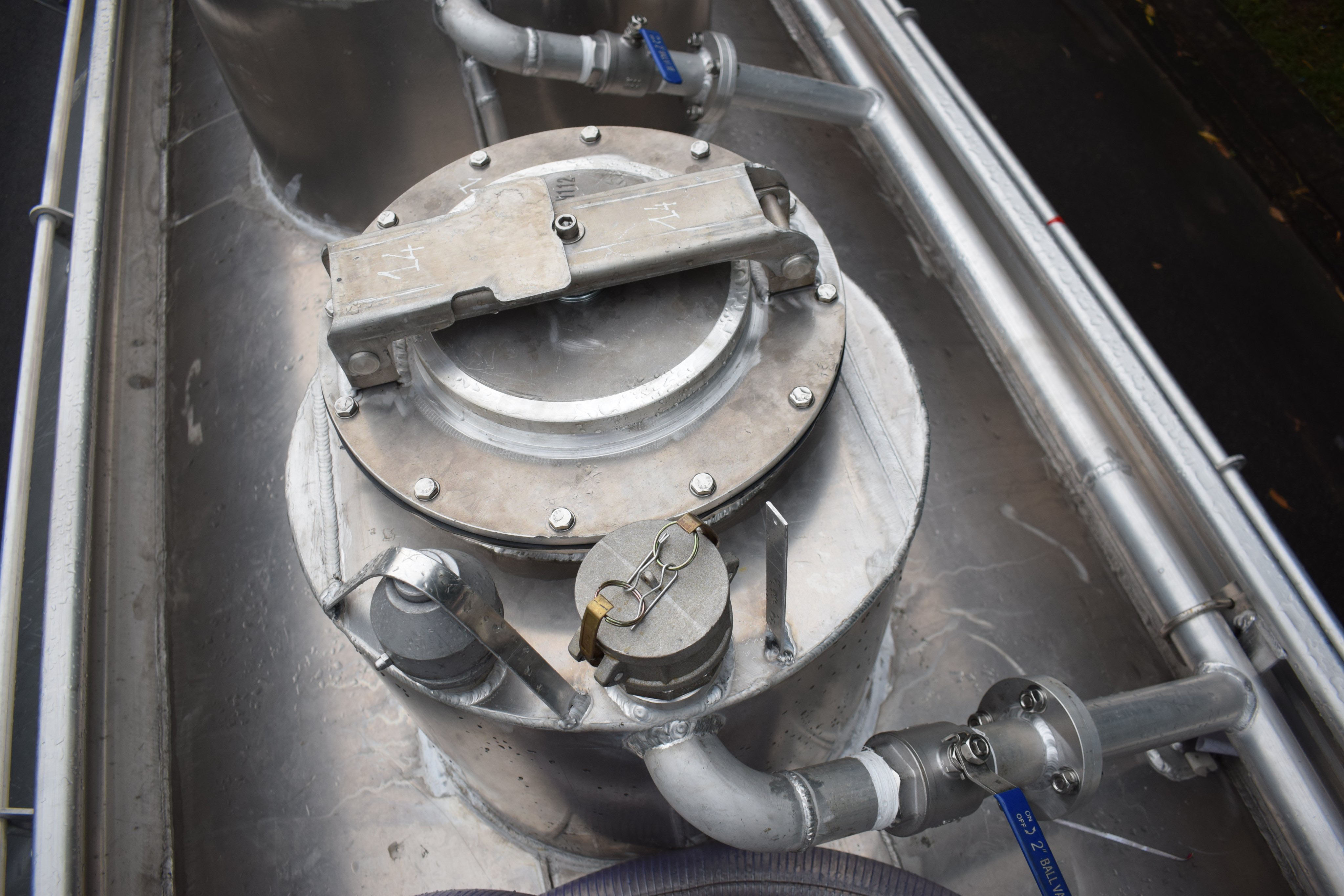

| Material | Aluminum alloy AL-5083 |
| Van xả | Van bi Ø90 (Material: inox, teflon seal) |
| Cầu thang | Ống nhôm Ø34 (1 cái), bậc thang bằng thanh V chống trượt |
| Ống mềm dẫn xăng dầu | 10m Ống mềm Ø90 cấp theo xe |
| Hệ thống an toàn - PCCC | 02 fire extinguisher powder 8kg |
| Hệ thống van đáy đóng khuẩn cấp sử dụng khí nén, đóng khẩn cấp khi xảy ra sự cố. Cách ly hoàn toàn xăng dầu trong bồn khỏi nguồn cháy, đảm bảo an toàn tài sản và con người trong trường hợp xảy ra sự cố cháy nổ. | |
