DOTHANH IZ50S - XE TẬP LÁI

DOTHANH IZ65M Plus - DRIVING TRAINING TRUCK

Model:

DOTHANH IZ Plus

Origin:

CKD

Weight:

3.6 T

Listed price:

Contact

Information Exterior Furniture Efficiency Technical specifications Video

Information

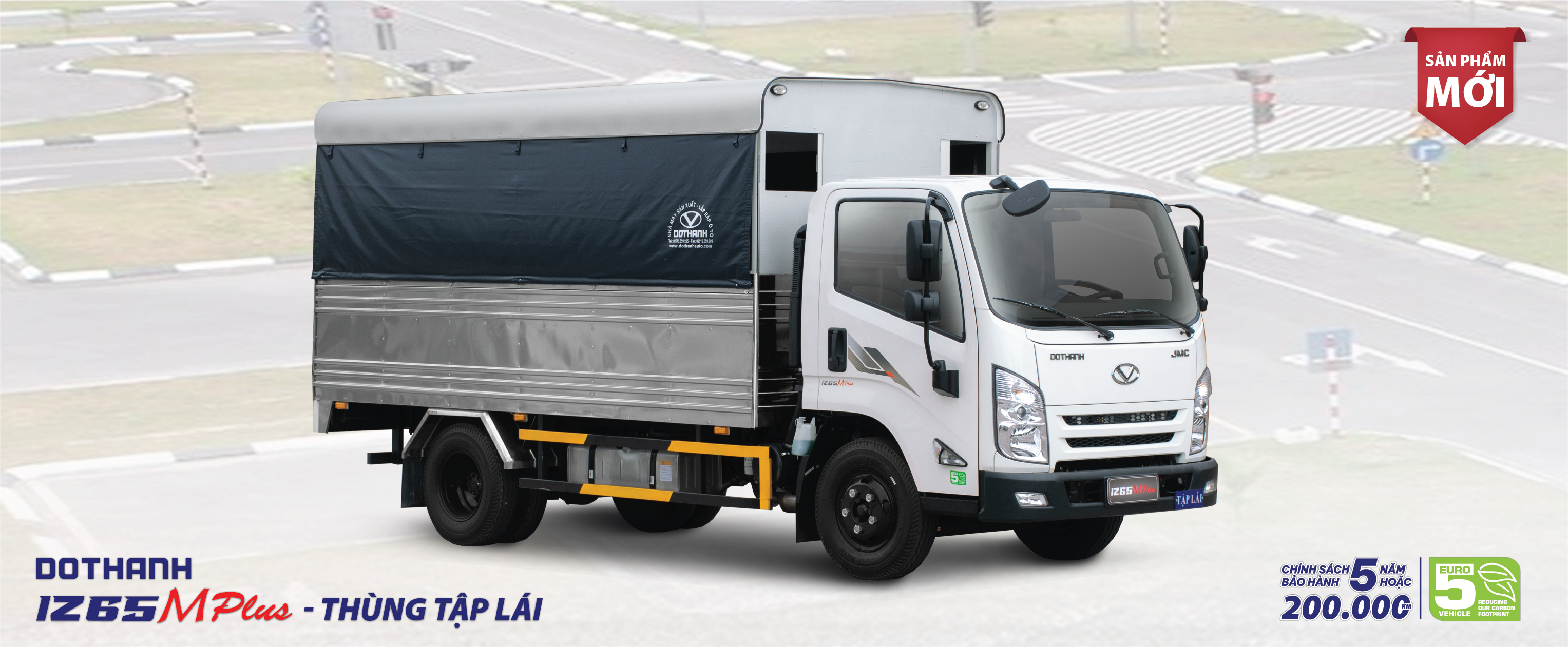

DOTHANH IZ65M Plus - DRIVING TRAINING TRUCK

Total load

6.5 T

Weight

3.6 T

Engine power

116 Ps

The standard long

3.360 mm

DOTHANH IZ65M Plus - Driving Training Truck is a specialized truck model at driving schools, with a spacious square cabin, accompanying students and trainees during the practice of Training & Driving Competence Class B, C. The product is researched. Thorough research to bring the best training and learning results, meeting all conditions according to current regulations of the Department of Transport and Inspection Department.

Exterior

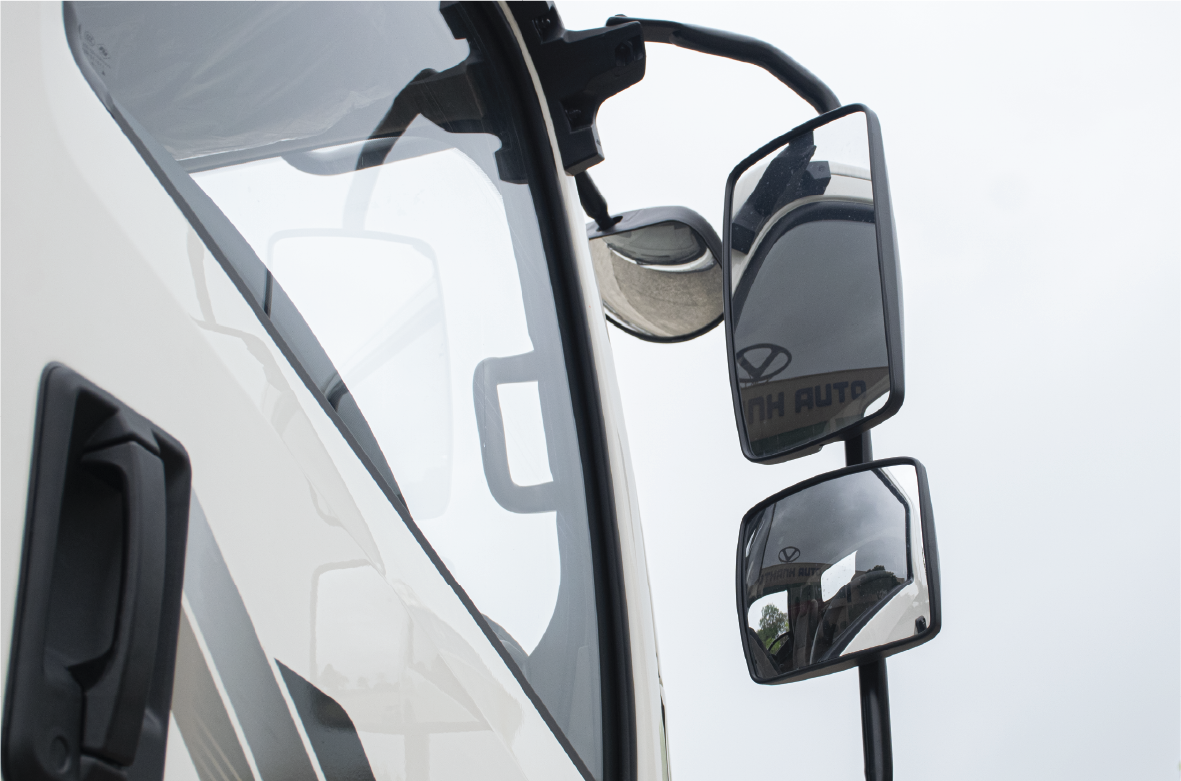

2-layer rearview mirror: flat mirror and convex mirror

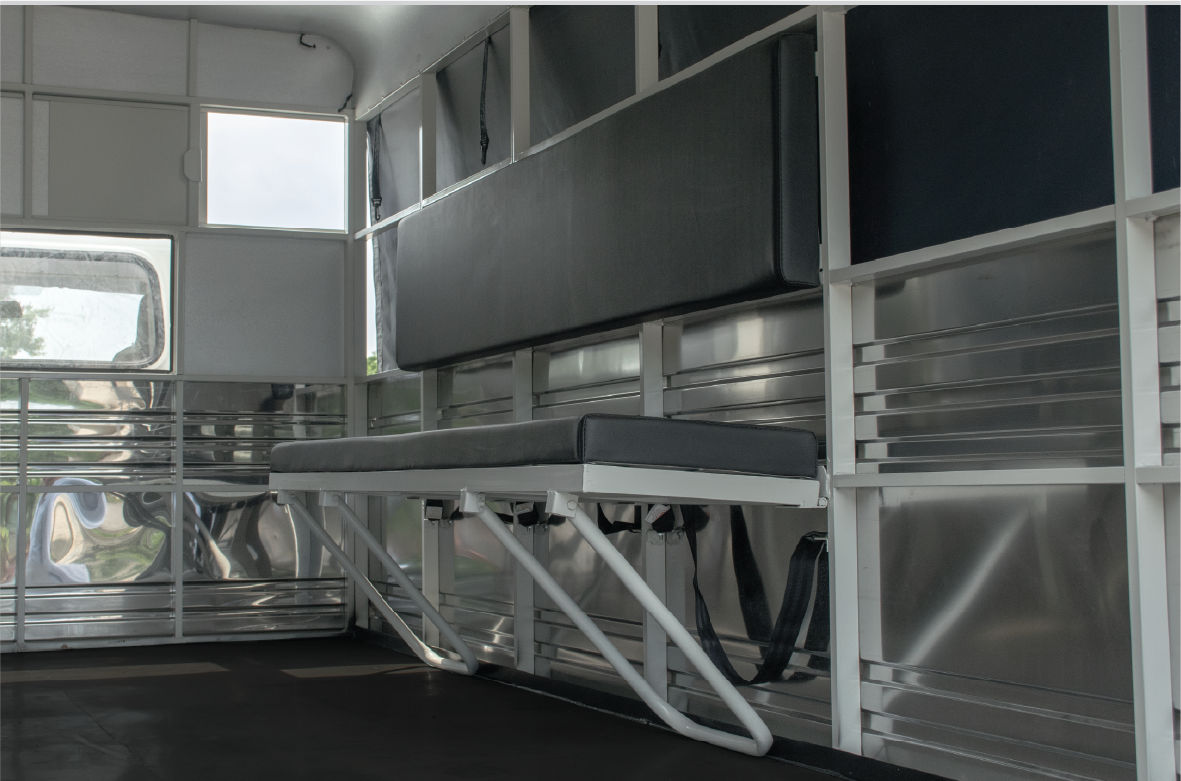

2 rear bench seats in the cargo area, with seat belts

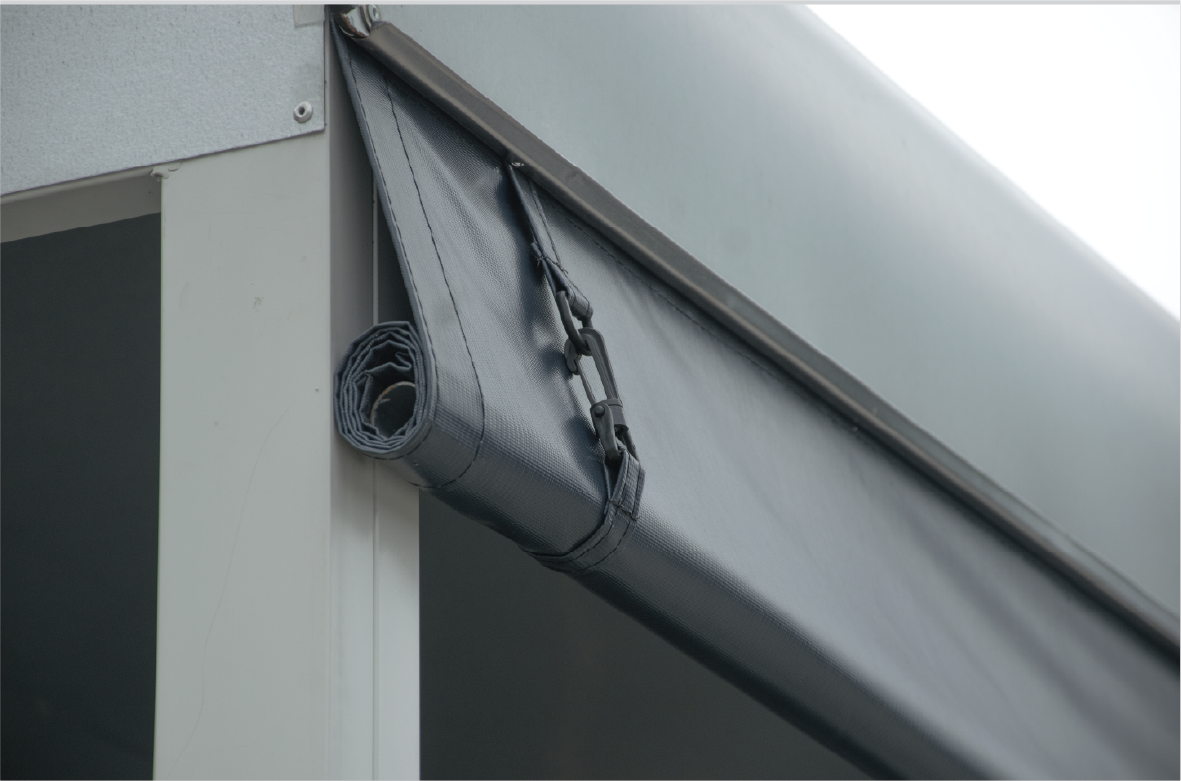

Tarpaulin tie-down straps

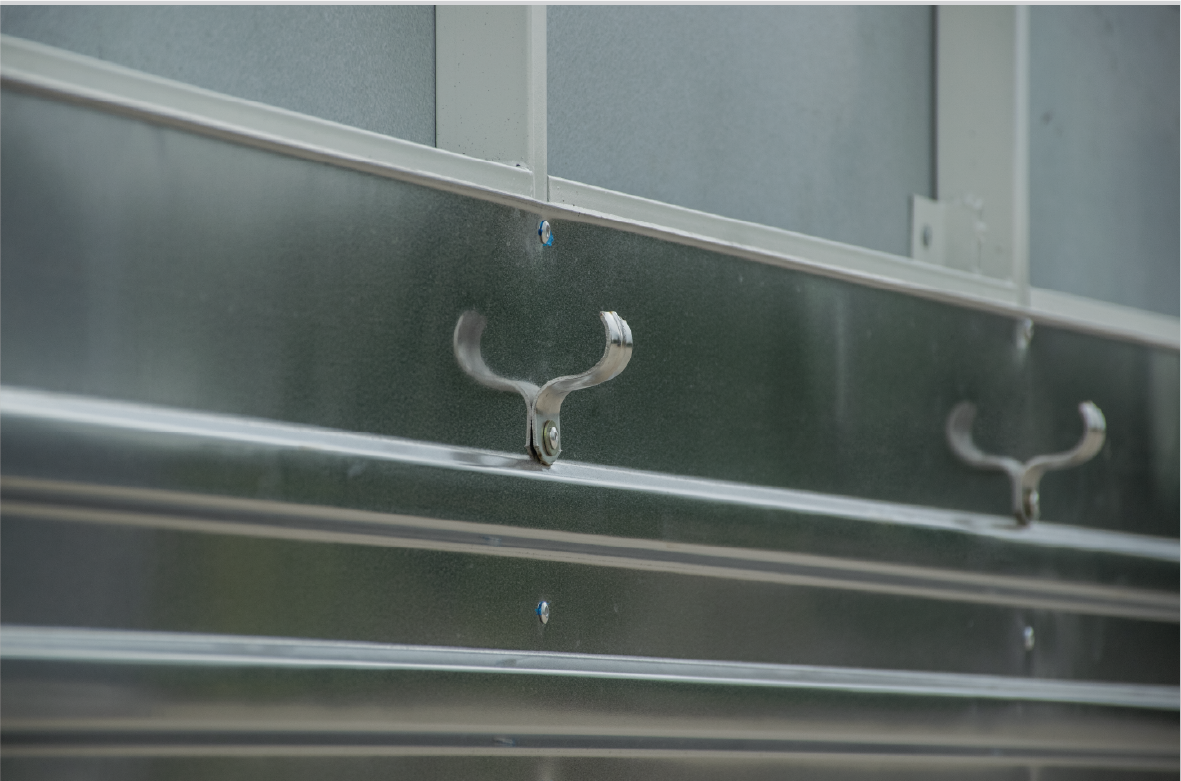

Tarpaulin hooks

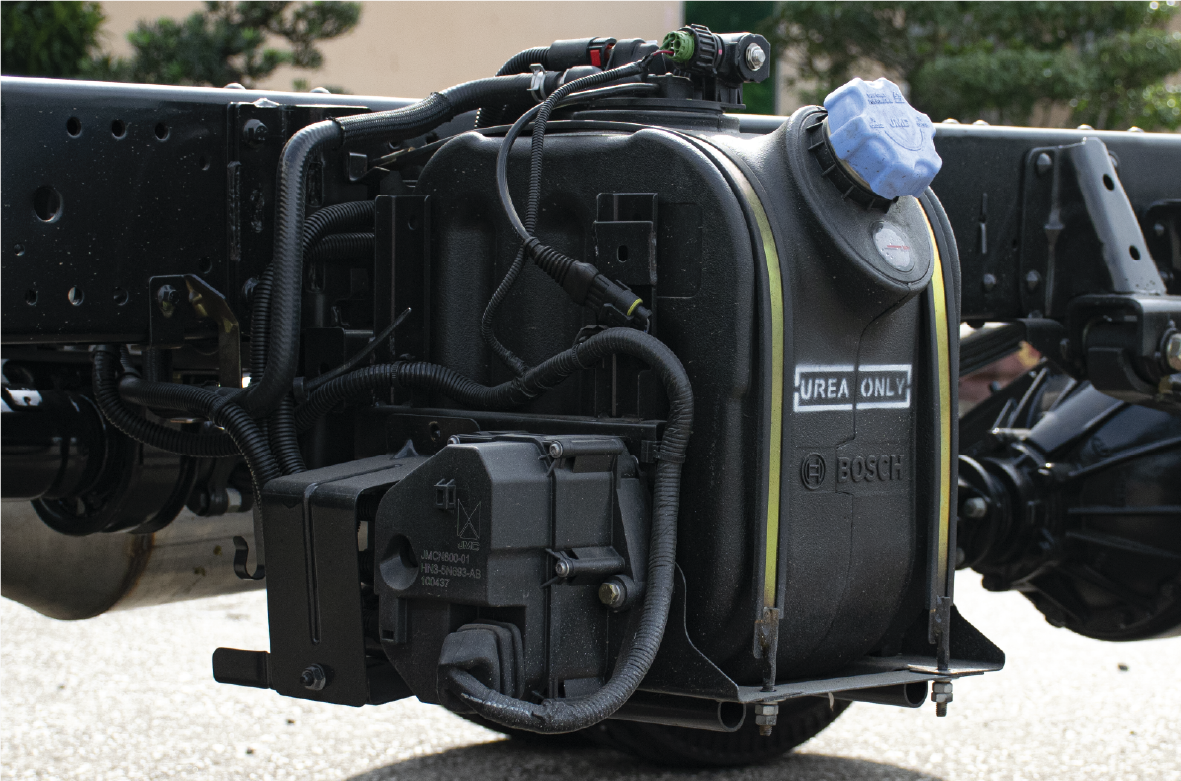

Urea tank

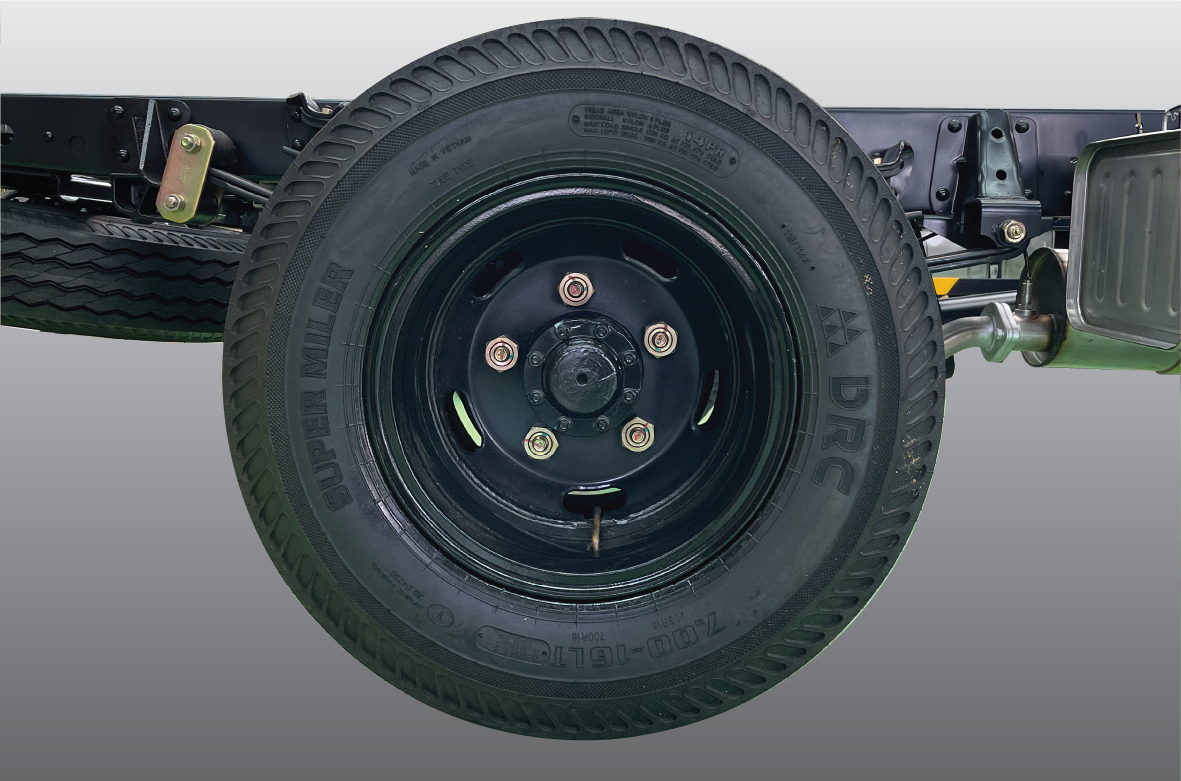

DRC 7.00-16 Synchronous Tire

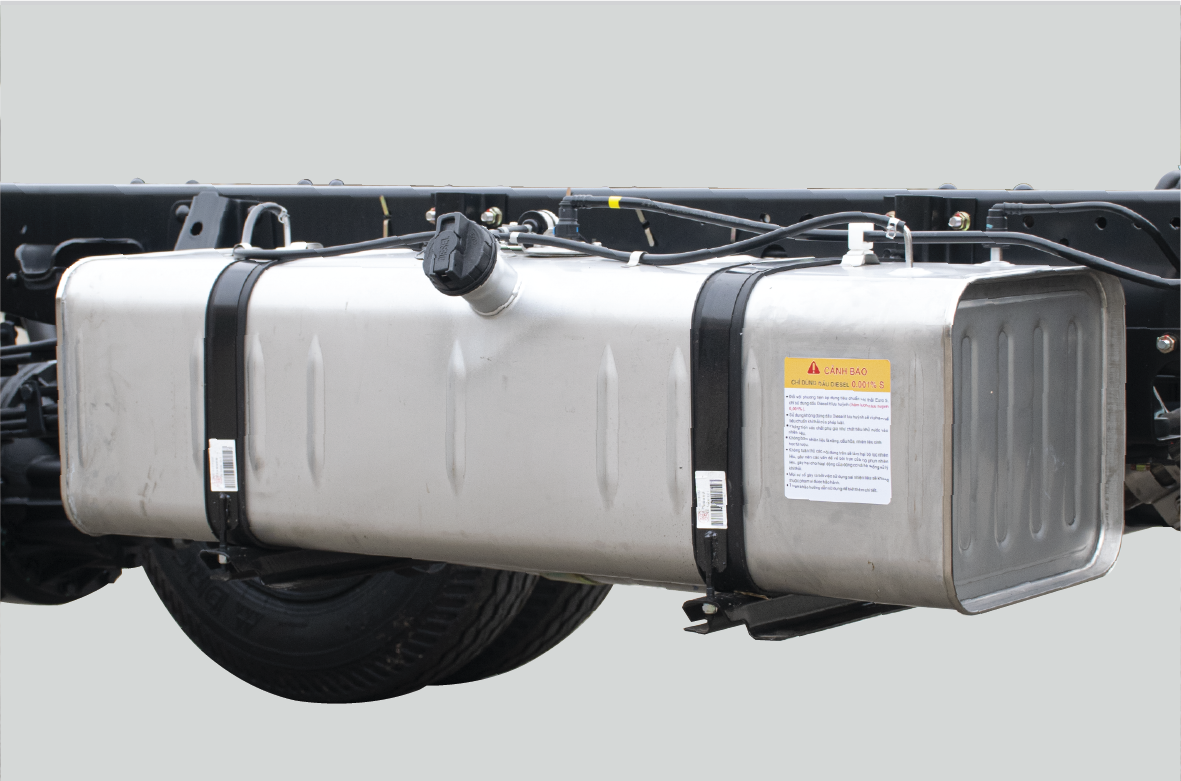

Austenitic stainless steel fuel tank

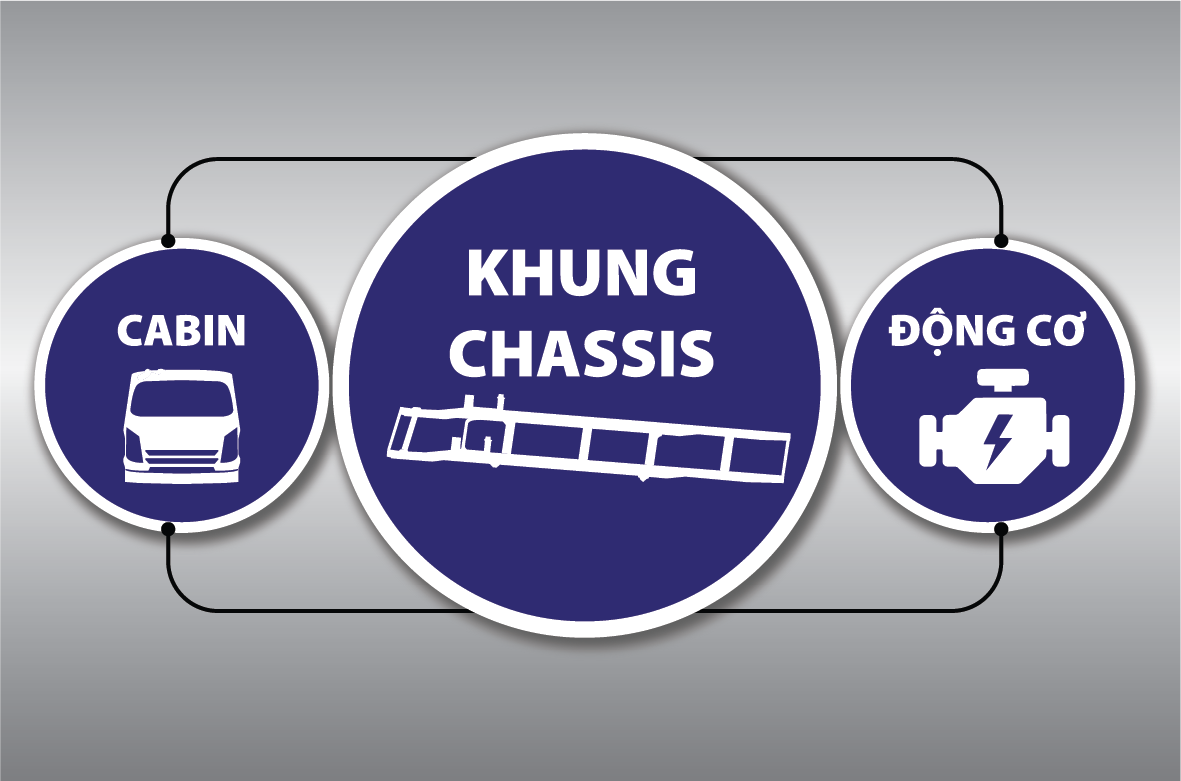

Synchronous imported components

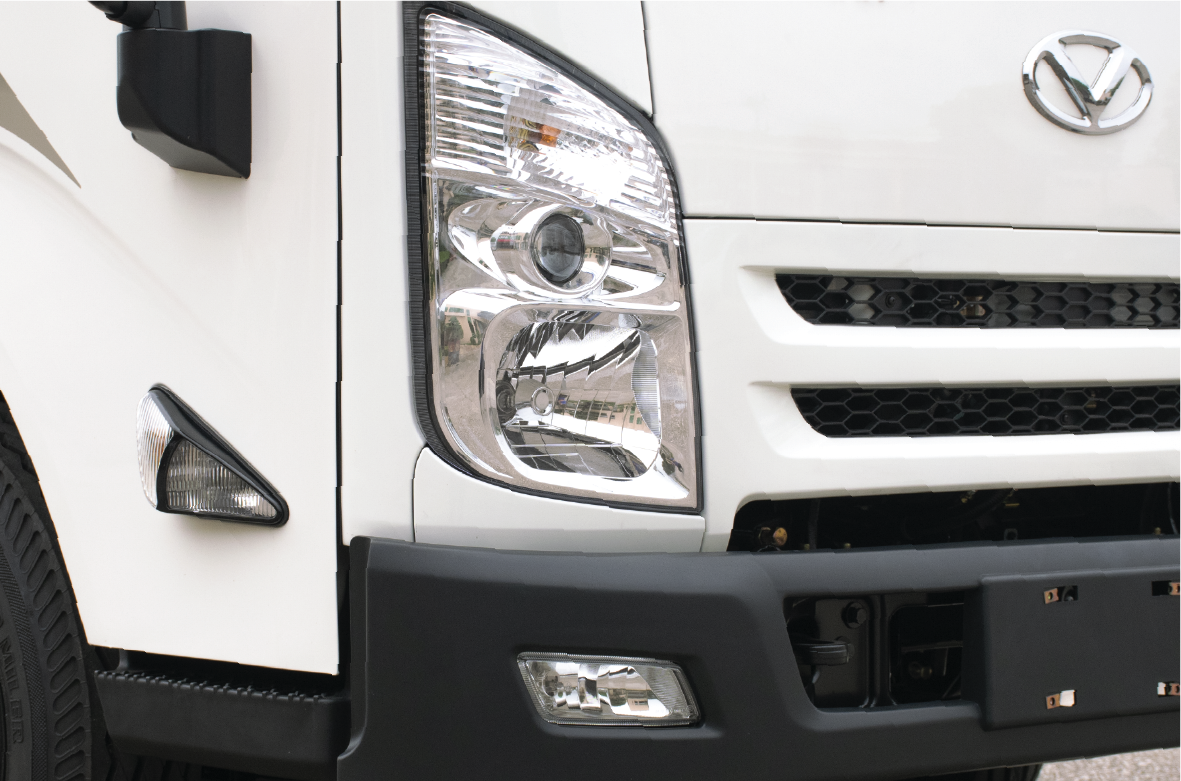

Halogen headlights and fog lights

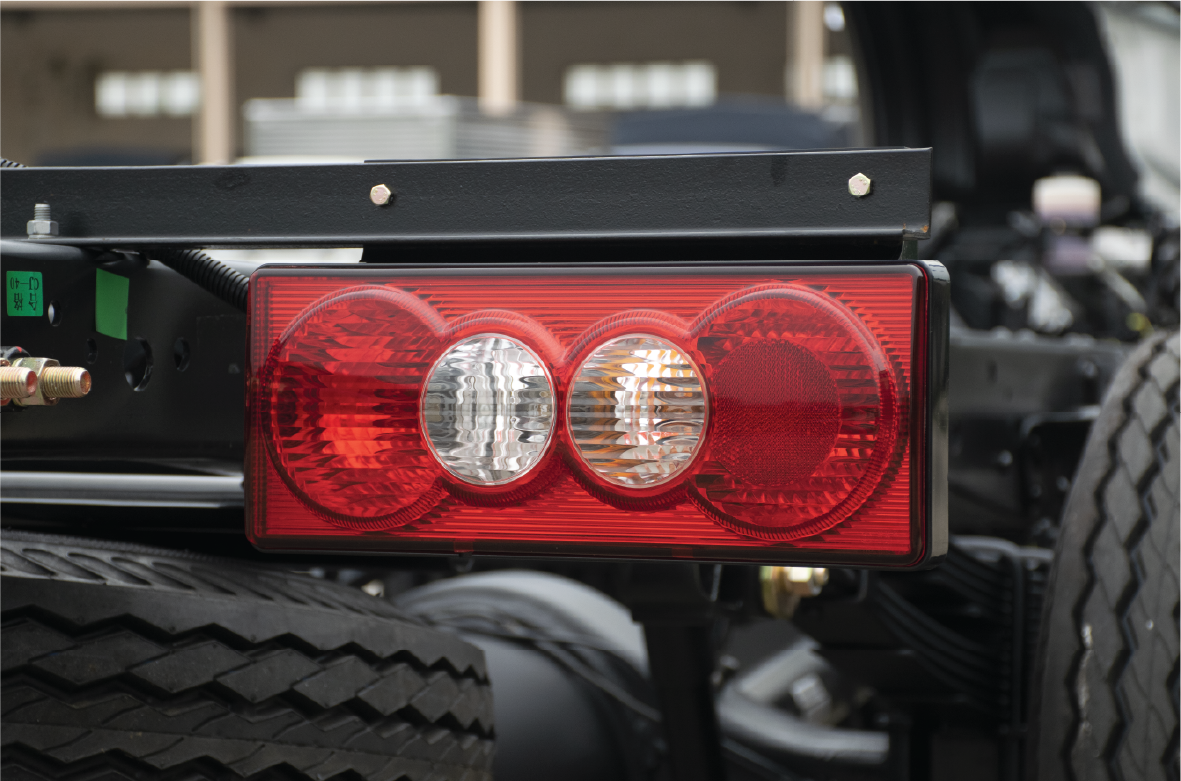

Modern rear lights

Furniture

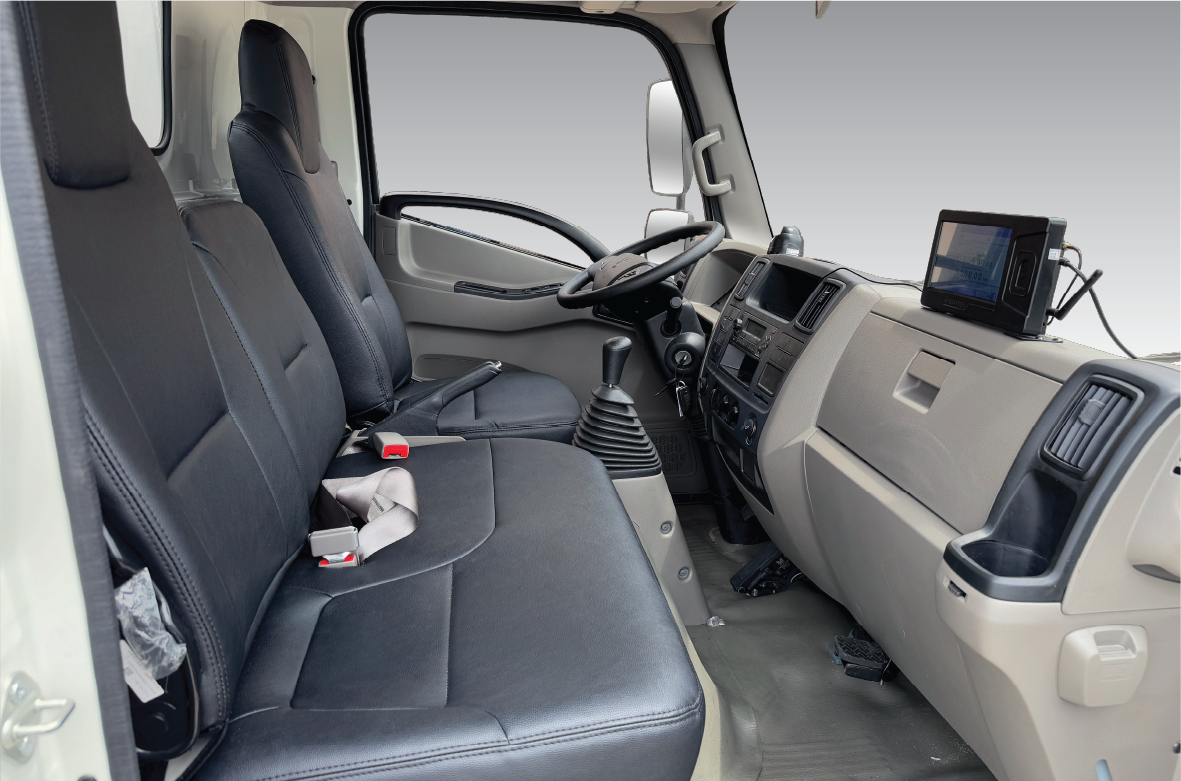

Spacious interior

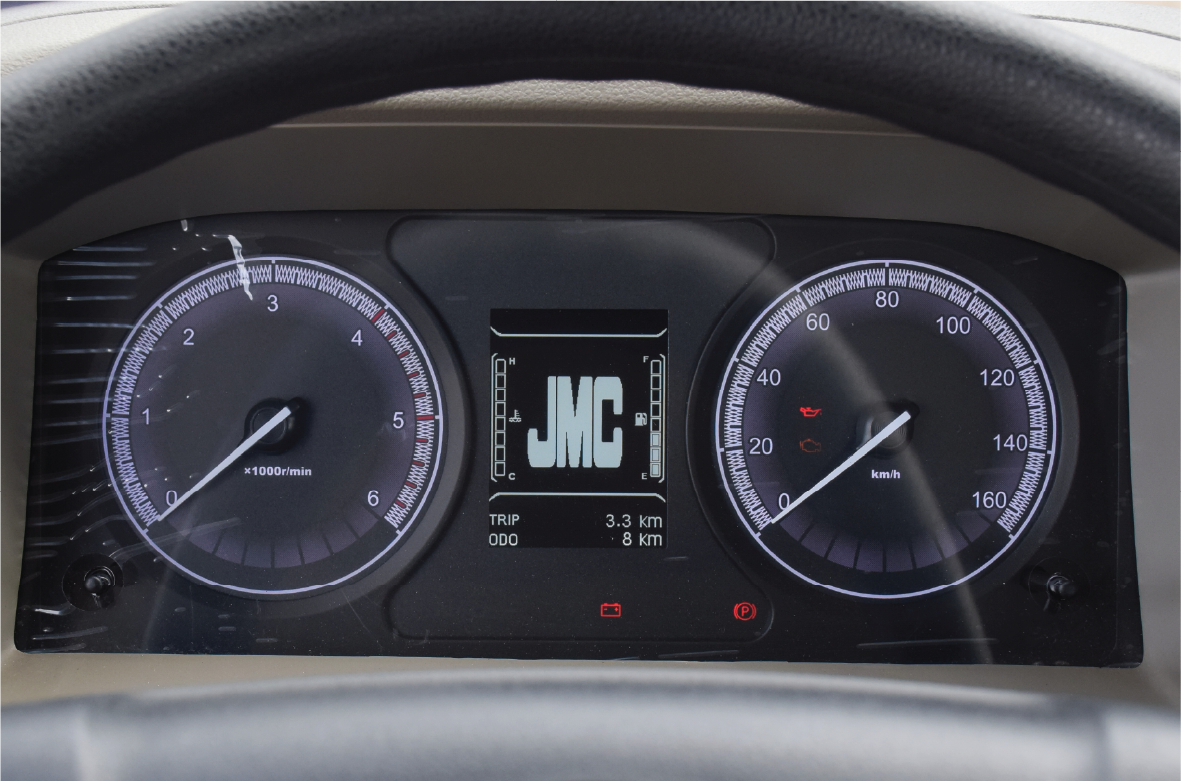

Display Screen

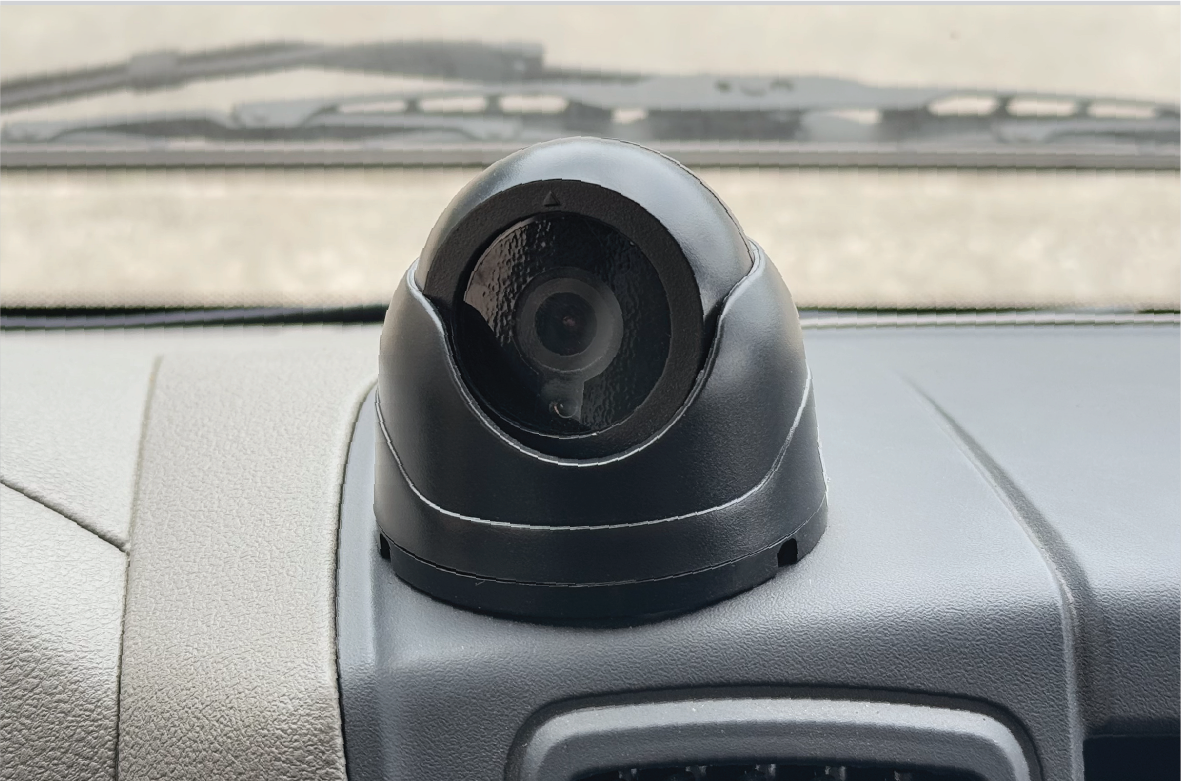

Integrated EcoTek camera system

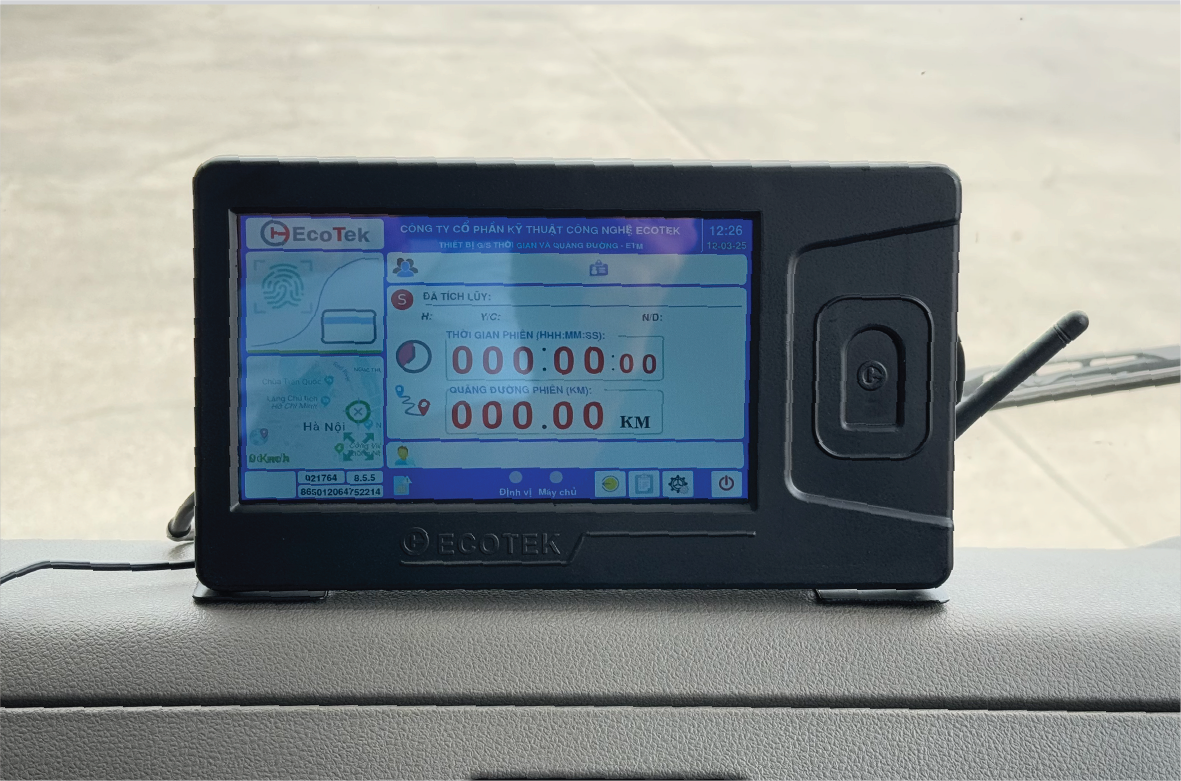

EcoTek DAT device

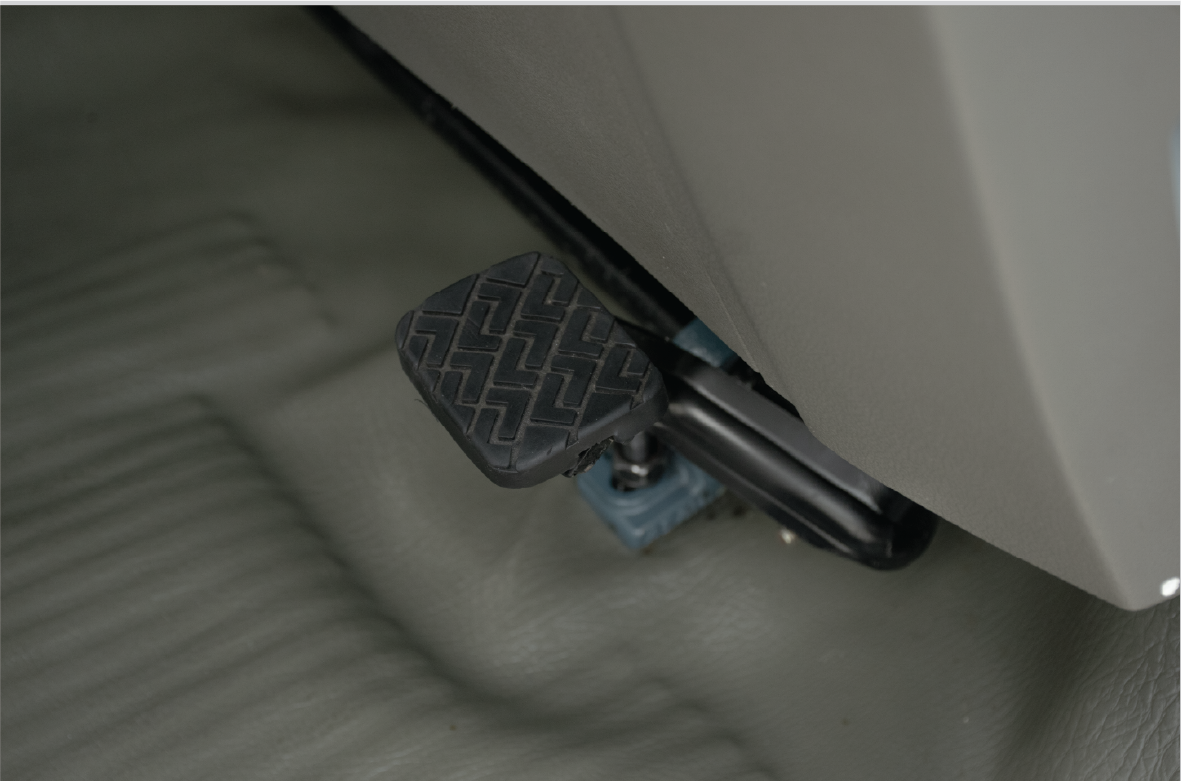

Dual control brake

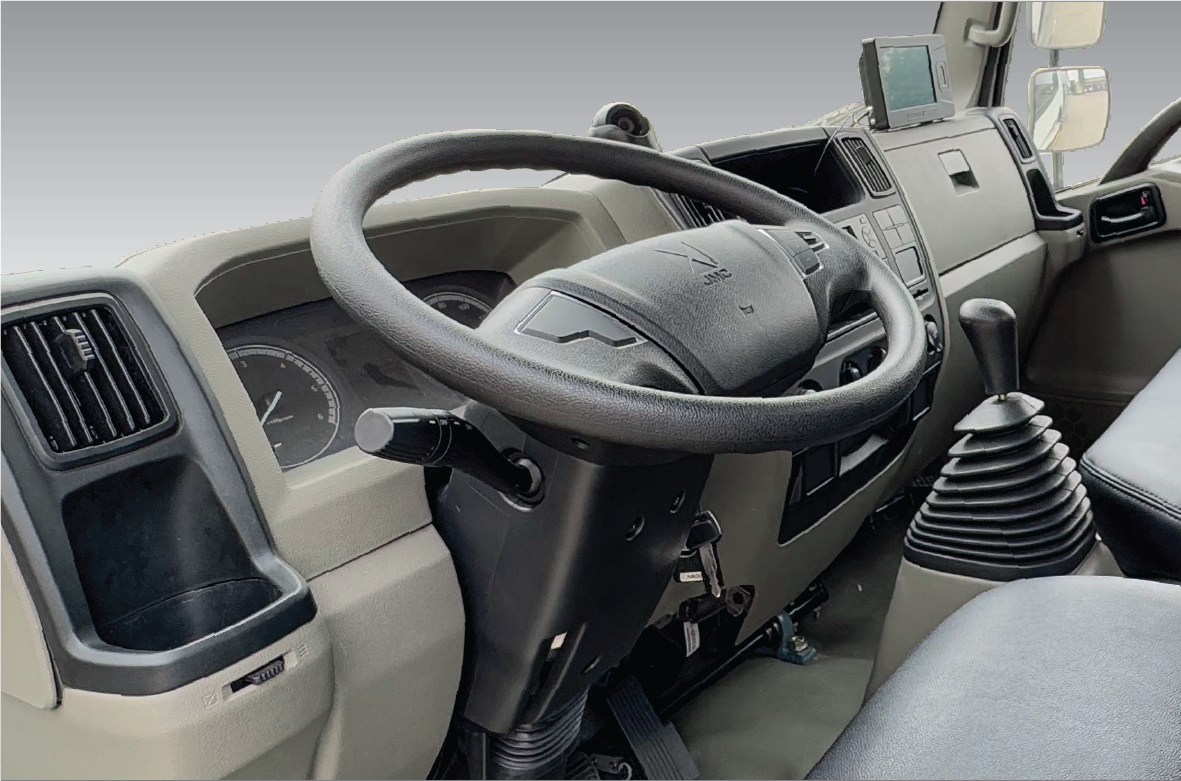

Scientifically designed dashboard

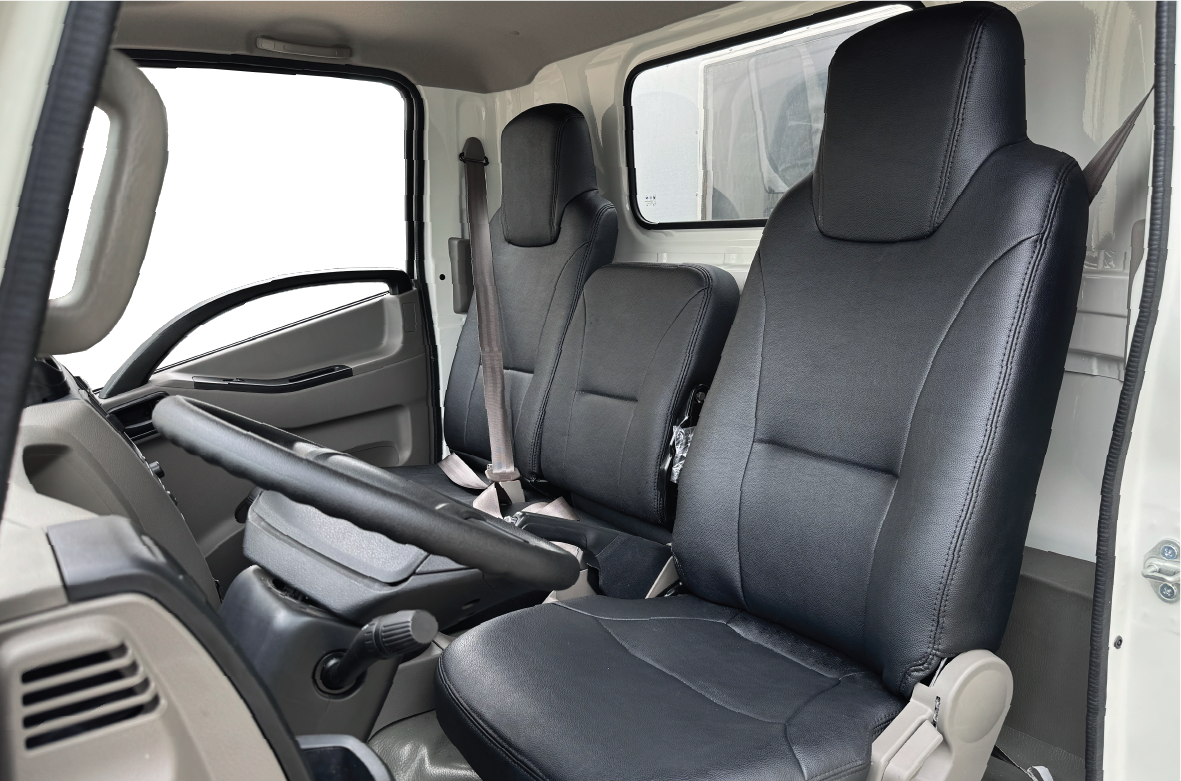

Ergonomic chair

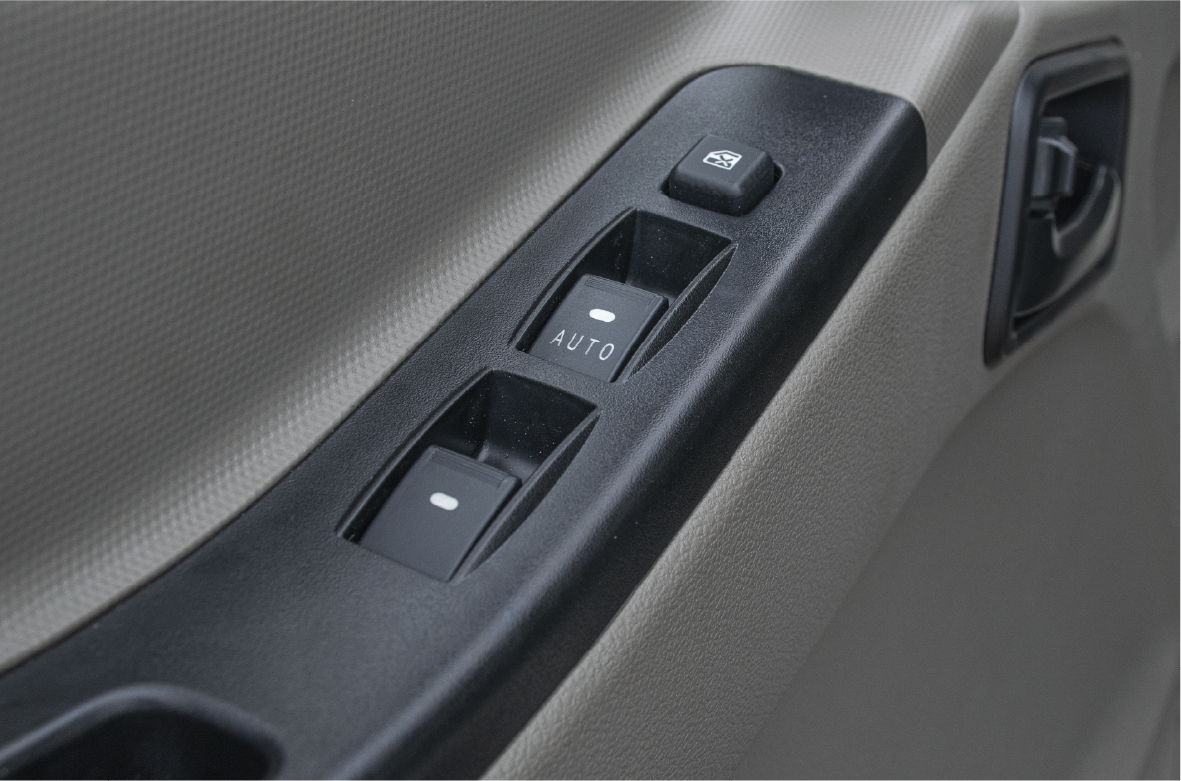

Central door locking

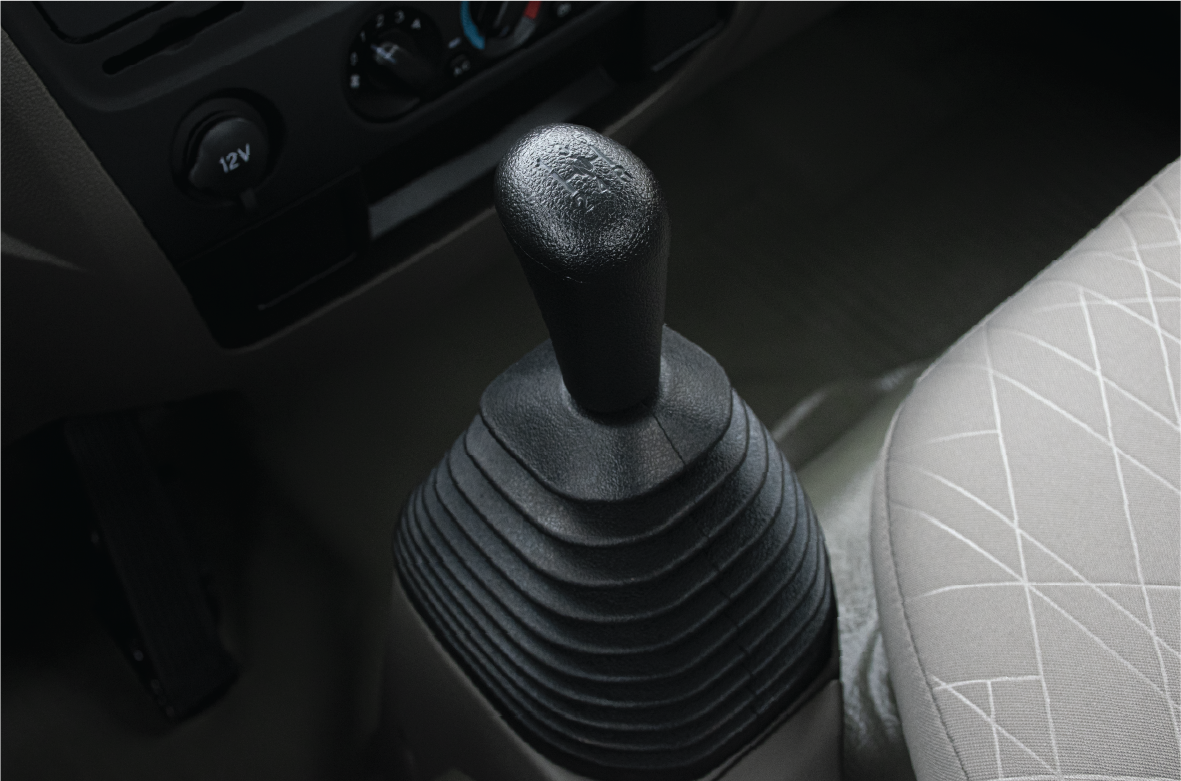

Manual transmission: 5 forward gears, 1 reverse gear

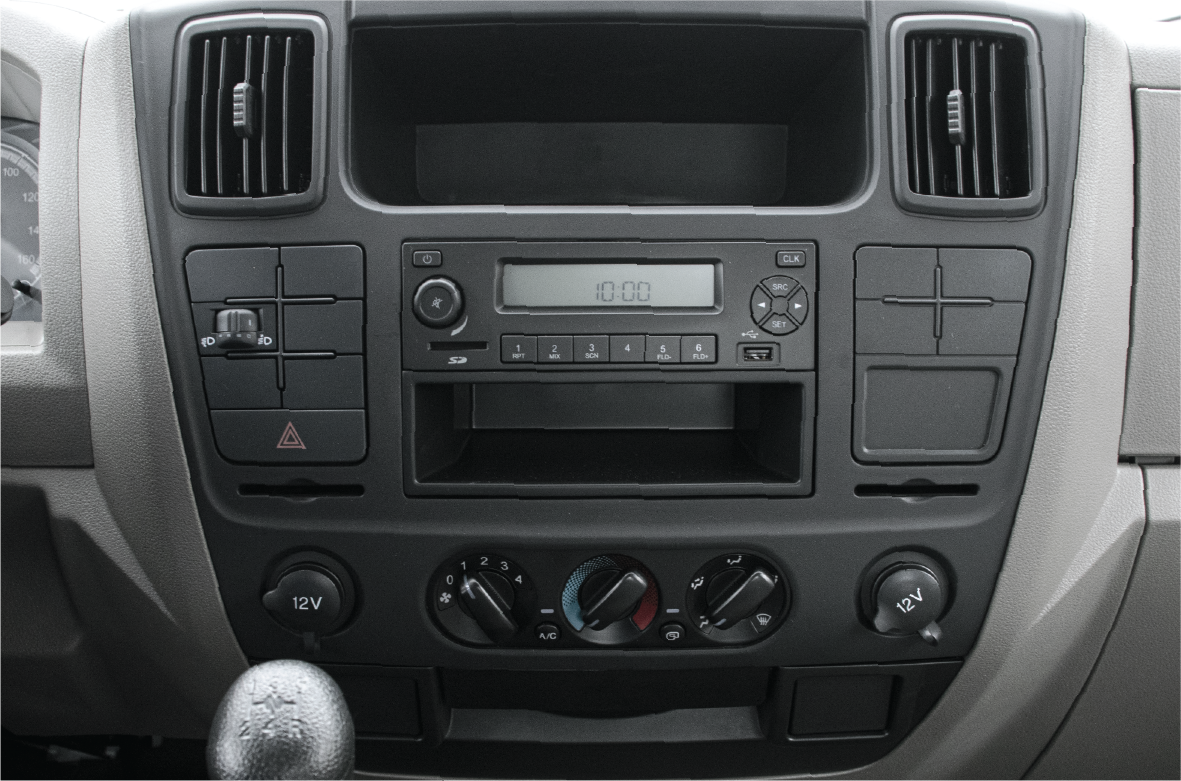

Air conditioning and entertainment system

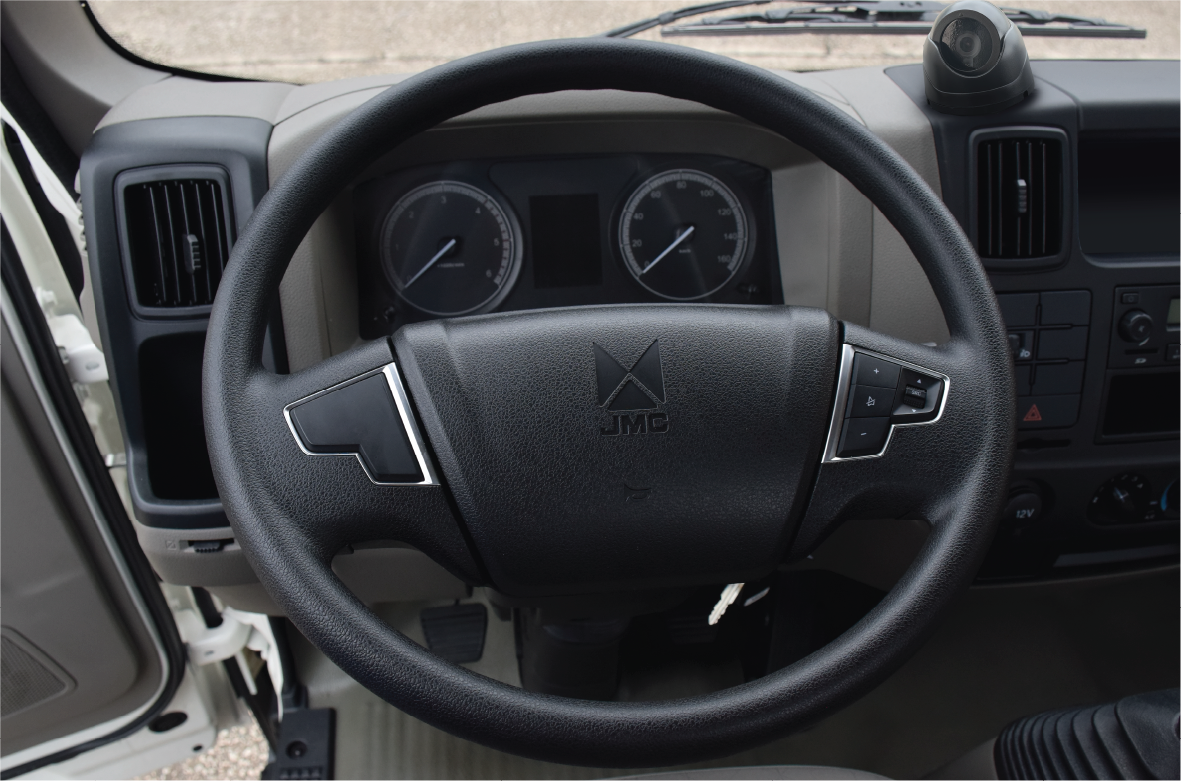

Tilt steering wheel

Efficiency

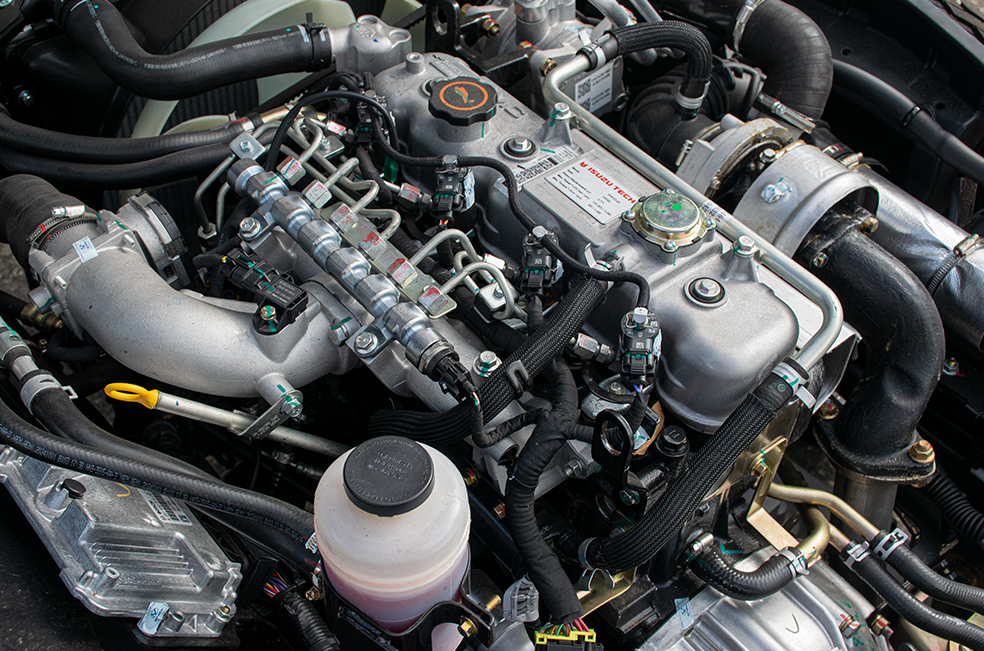

Electronic fuel injection control system and wiring harness from Bosch (Germany)

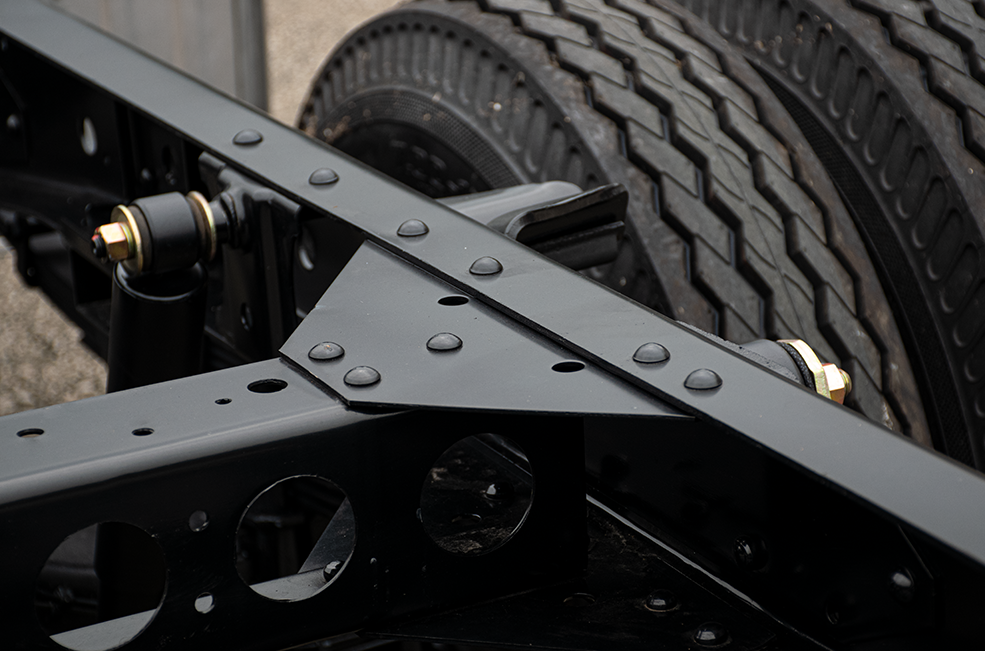

High strength steel chassis

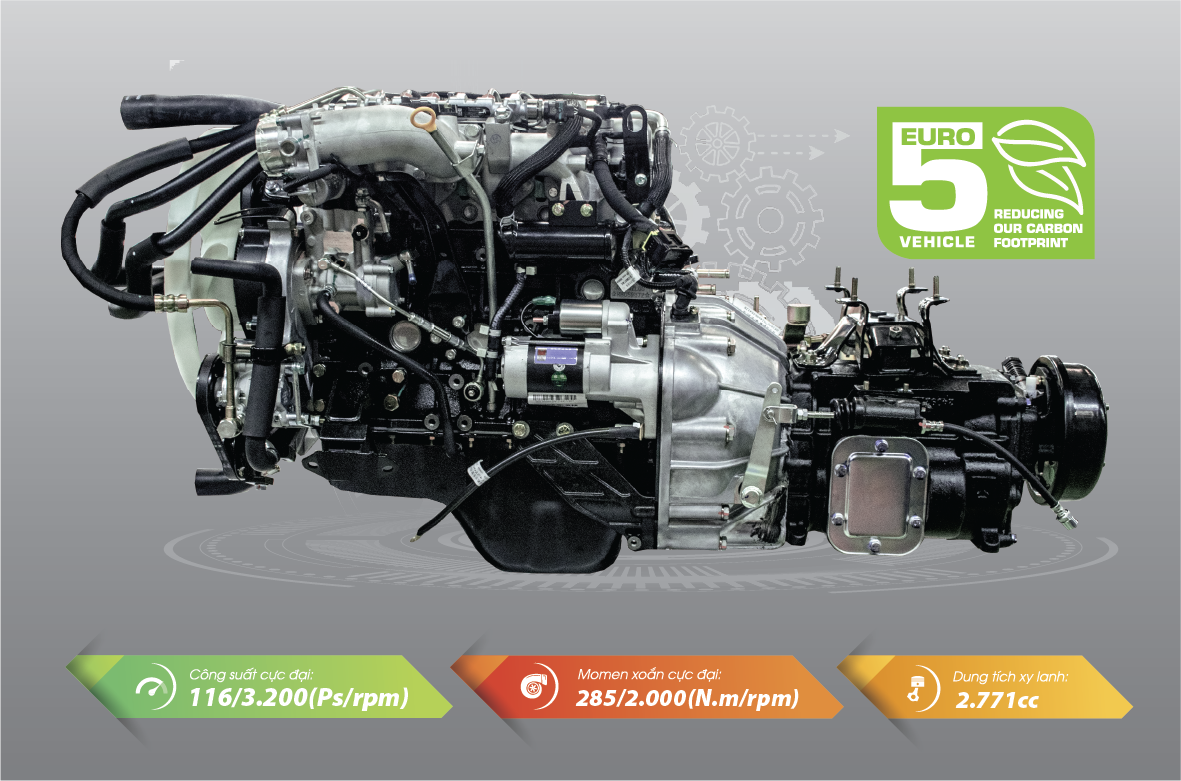

JX493ZLQ5 Engine and Gearbox

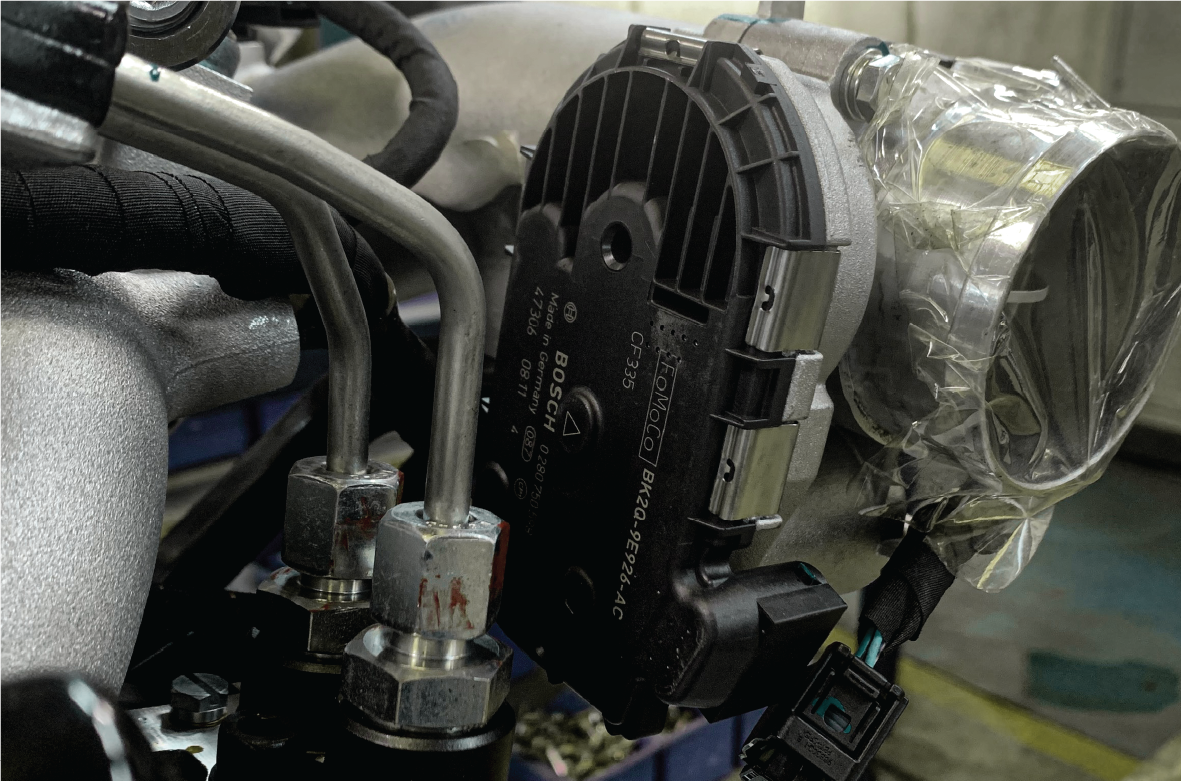

Bosch throttle position sensor (Germany)

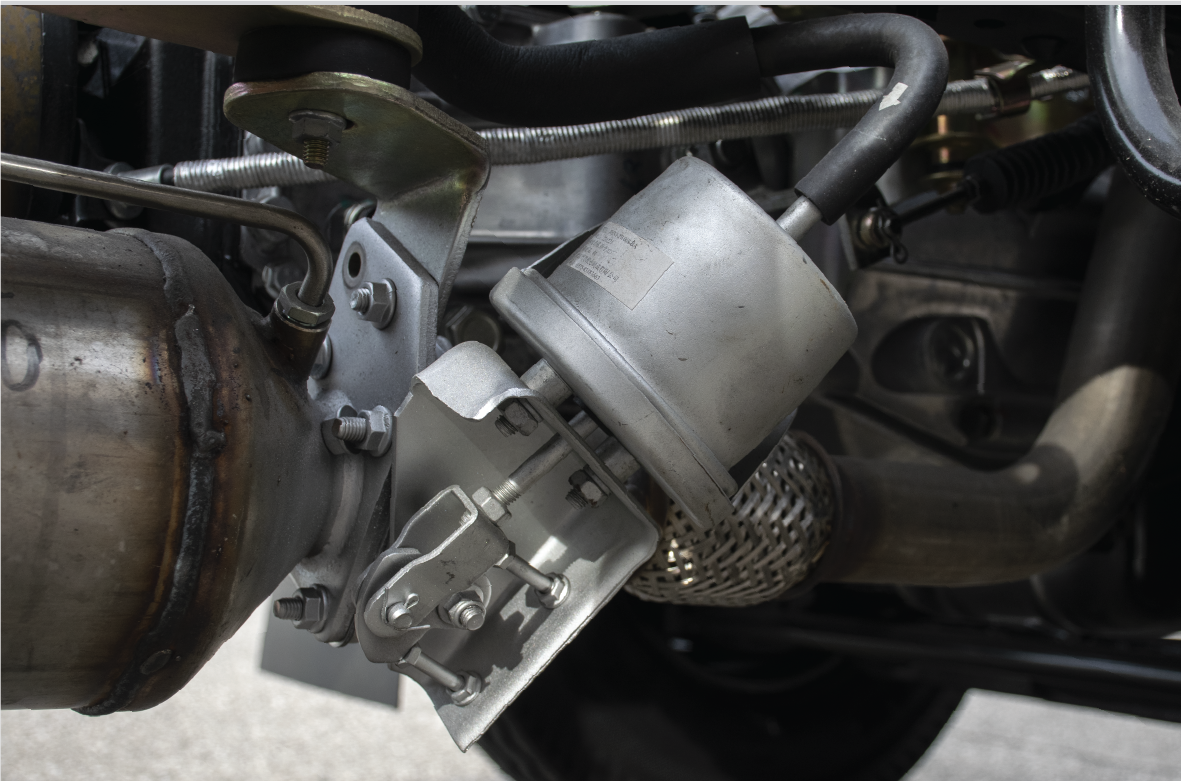

Exhaust brake

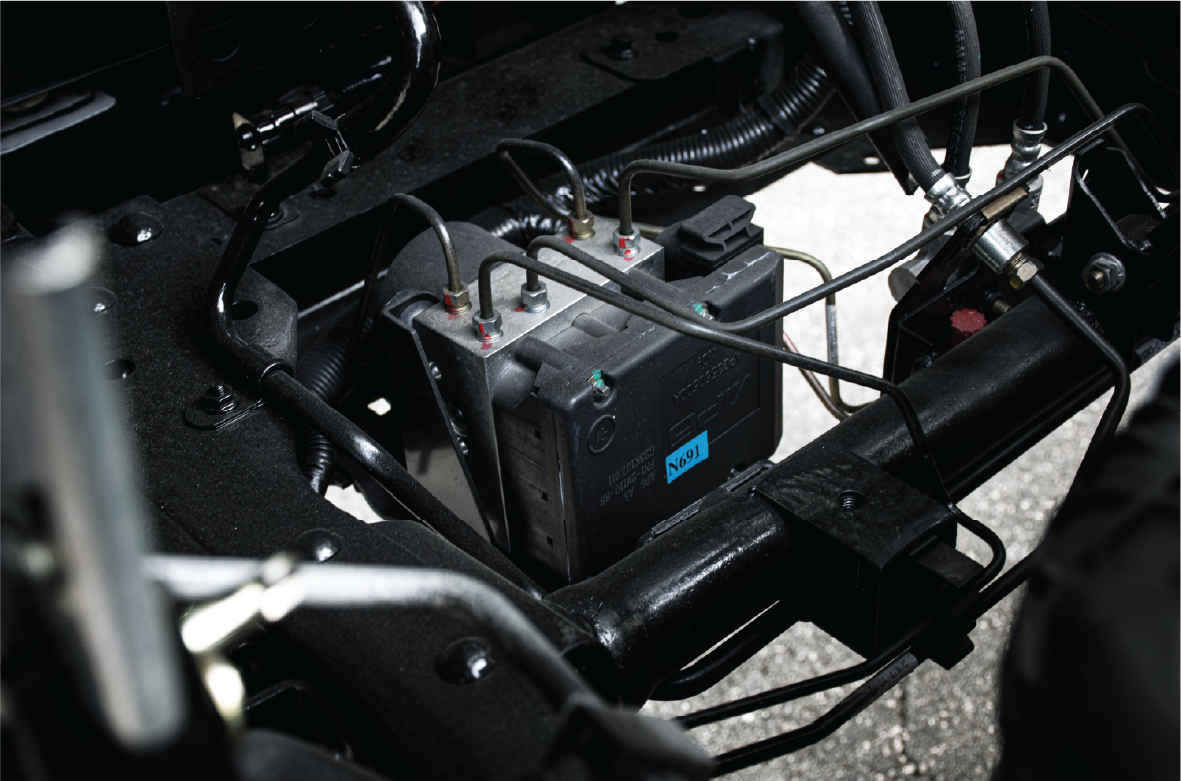

Anti-lock braking system

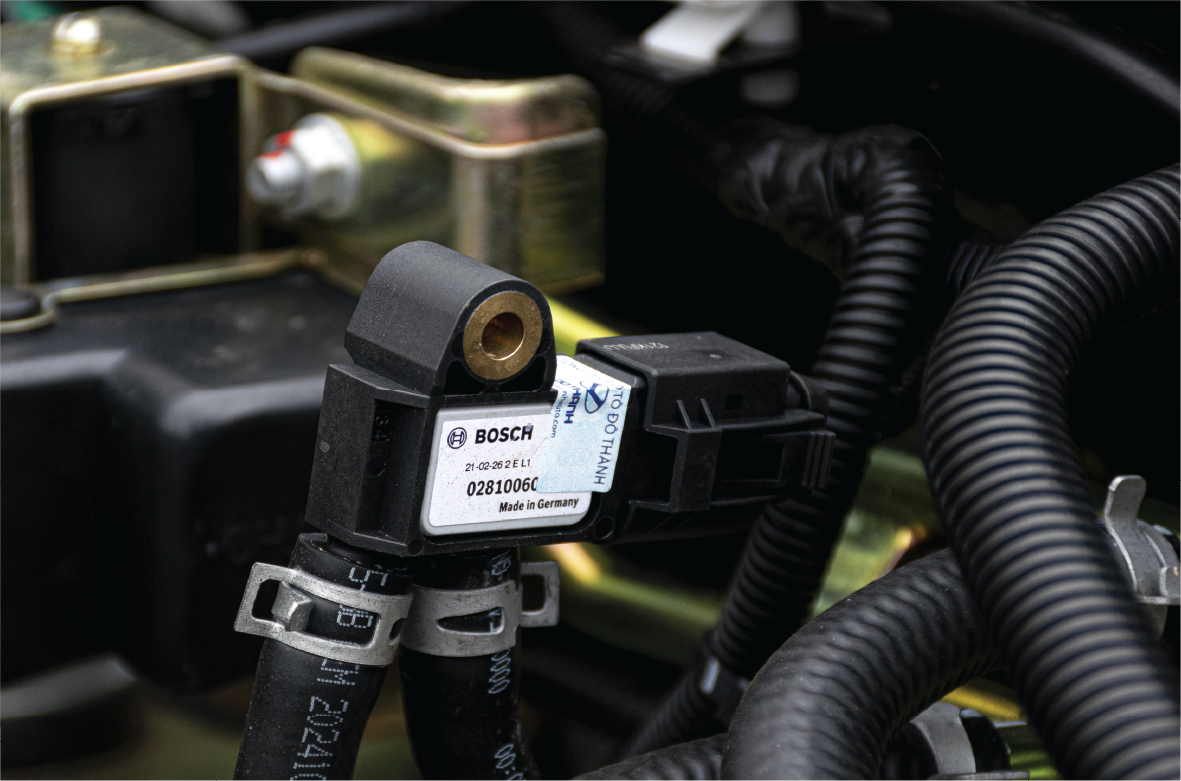

Bosch exhaust pressure sensor (Germany)

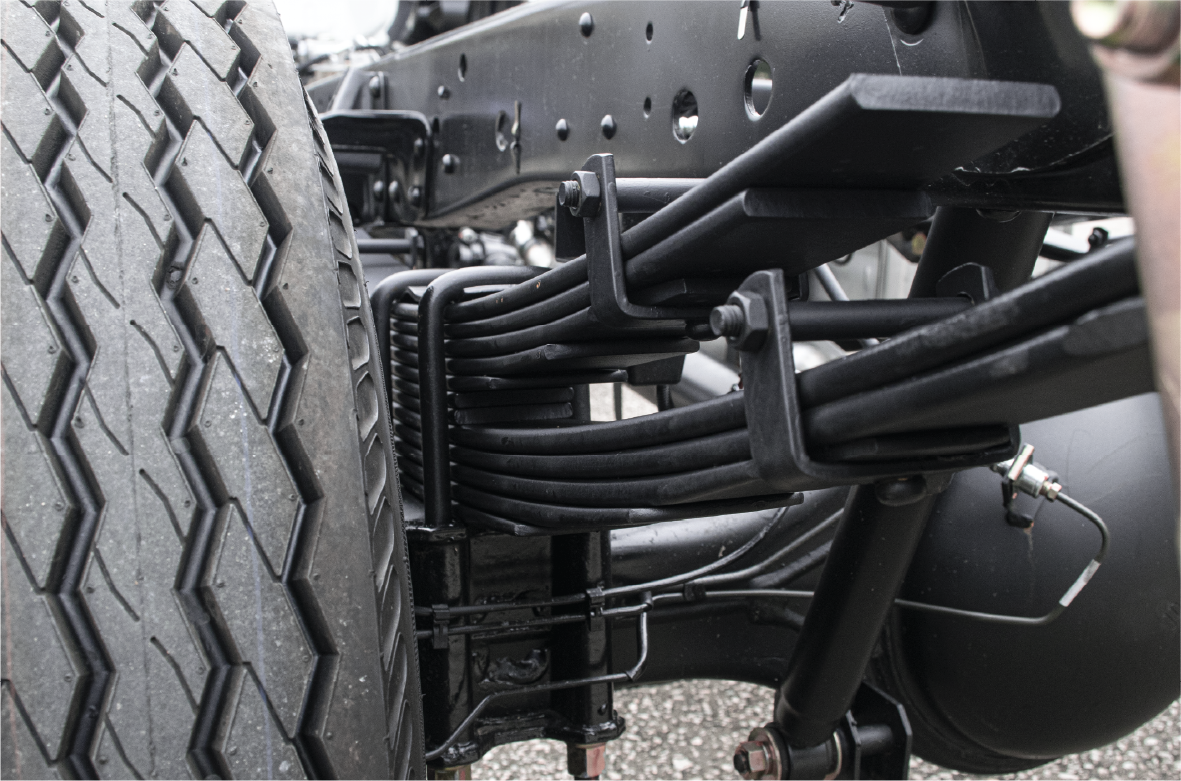

Enhanced leaf spring

Technical specifications

MODEL	DOTHANH IZ65M Plus - DRIVING TRAINING TRUCK
WEIGHT (kg)
Gross Vehicles	6.550
Pay load	3.600
Curb weight	2.755
Cabin/Rear seating	3 / 6
Fuel tank (L)	80
DIMENSION (mm)
Overall (LxWxH)	6.000 x 2.050 x 2.880
Dimensions of inner cargo body (LxWxH)	4.050 x 1.920 x 1.850
Wheel base	3.360
Front/Rear axle wheelbase	1.560 / 1.508
Ground clearance	300
ENGINE - TRANSMISSION
Model	JX493ZLQ5 (Euro 5)
Type	Diesel, 4 stroke, 4 cylinders in line, turbocharged, water-cooled
Displacement (cc)	2.771
Max power (PS/rpm)	116/3.200
Max torque (N.m/rpm)	285/2.000
Transmission	Mechanical, 5 forward gear, 1 reverse gear
Tire size/Wheels formula	7.00-16/4x2R
BRAKE SYSTEM
Brake	Drum brake, Hydraulic dual circuit with air assisted, Anti-lock braking system (ABS)
Parking Brake	Drum brake, mechanical drive, internal expanding acting on the transmission output shaft
Auxiliary Brake	Exhaust Brake, Dual control brake
OTHER SYSTEM
Clutch	Dry single plate, Hydraulic control with air assisted
Steering system	Recirculating Ball, mechanical drive, with Integral Power Assisted By Oil
Suspension	Dependent, semi-elliptical leaf spring, hydraulic shock absorber
Generator	14V-110A
Battery	12V-90Ah
PERFORMANCE
Max gradability (%)	28,88
Max speed (km/h)	87,02
Smallest rotation radius (m)	6,17
