DOTHANH IZ50S - XE TẬP LÁI

DOTHANH IZ50S - DRIVING TRAINING TRUCK

Model:

DOTHANH IZ

Origin:

CKD

Weight:

2.3 T

Listed price:

Contact

Information Exterior Furniture Efficiency Technical specifications Video

Information

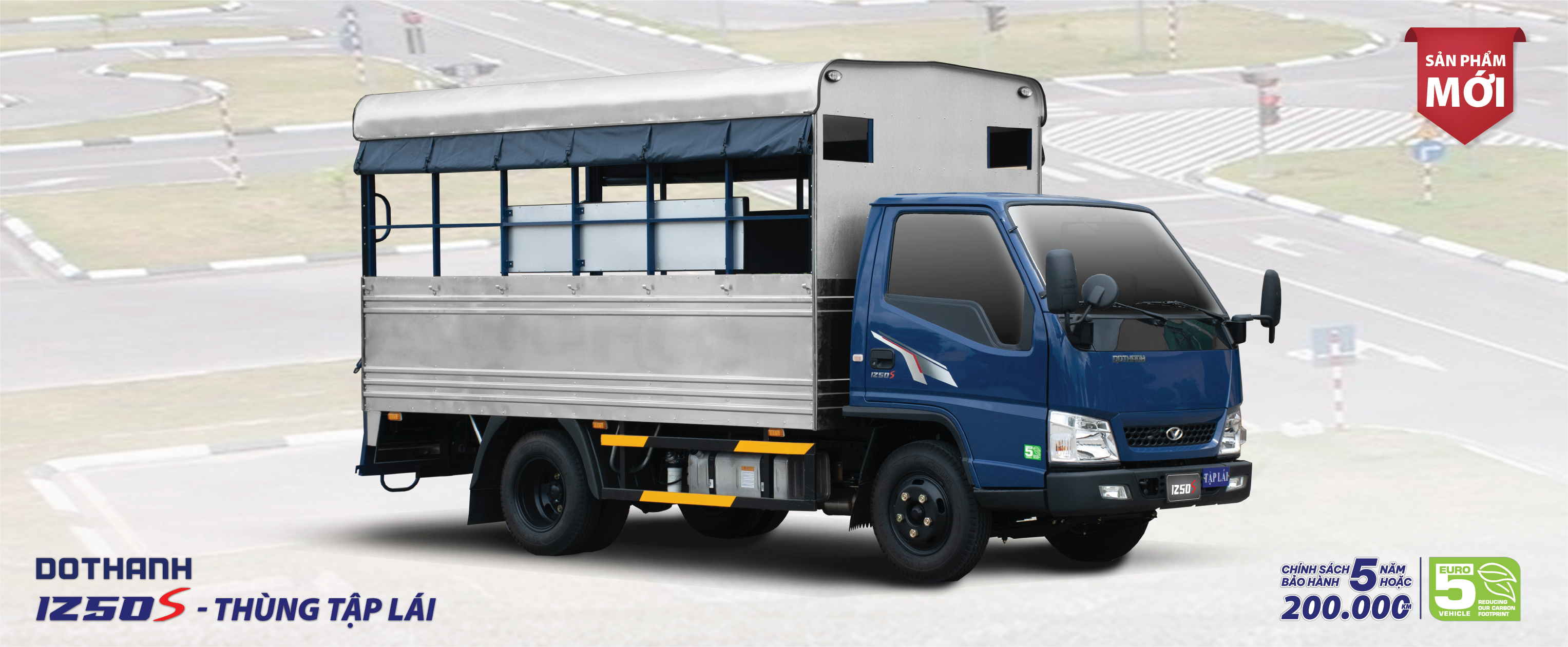

DOTHANH IZ50S - DRIVING TRAINING TRUCK

Total load

4.9 T

Weight

2.3 T

Engine power

116 Ps

The standard long

2.800 mm

DOTHANH IZ50S - Driving Training Truck is a specialized truck model at driving schools, accompanying students and trainees during the practice of Training & Driving Competence Class B, C. The product is researched. Thorough research to bring the best training and learning results, meeting all conditions according to current regulations of the Department of Transport and Inspection Department.

Exterior

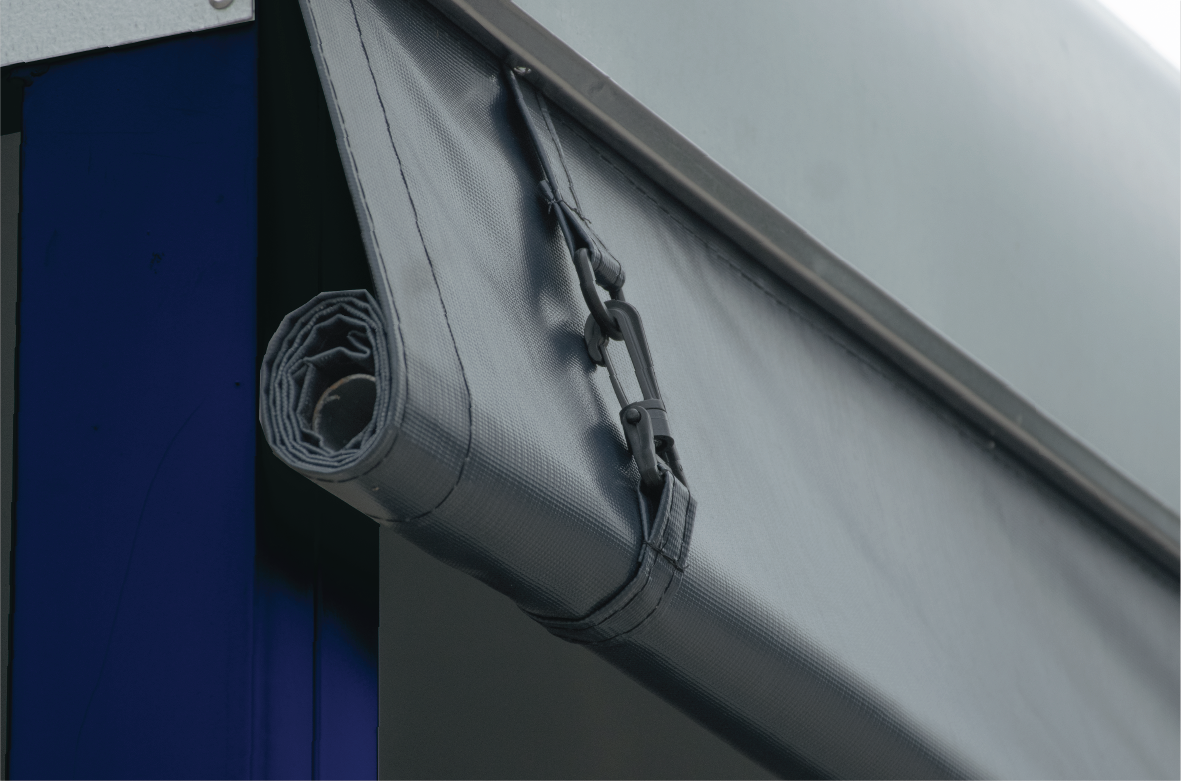

Tarpaulin tie-down straps

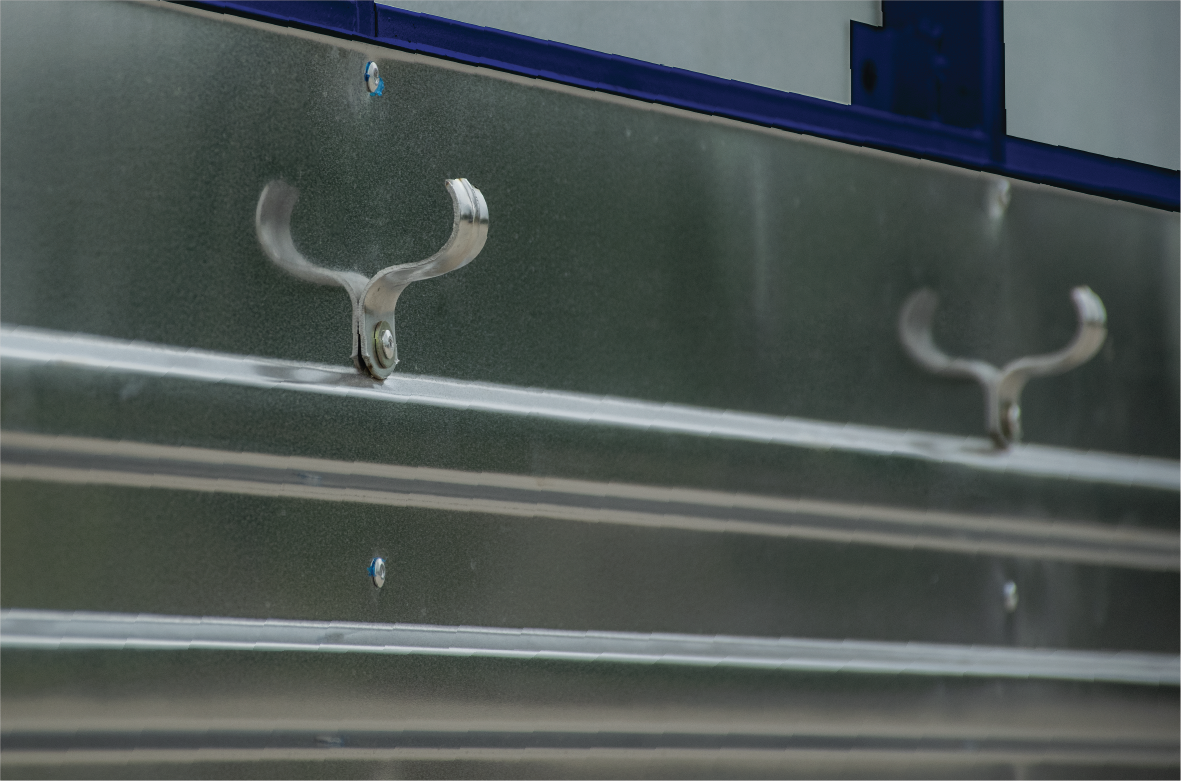

Tarpaulin hooks

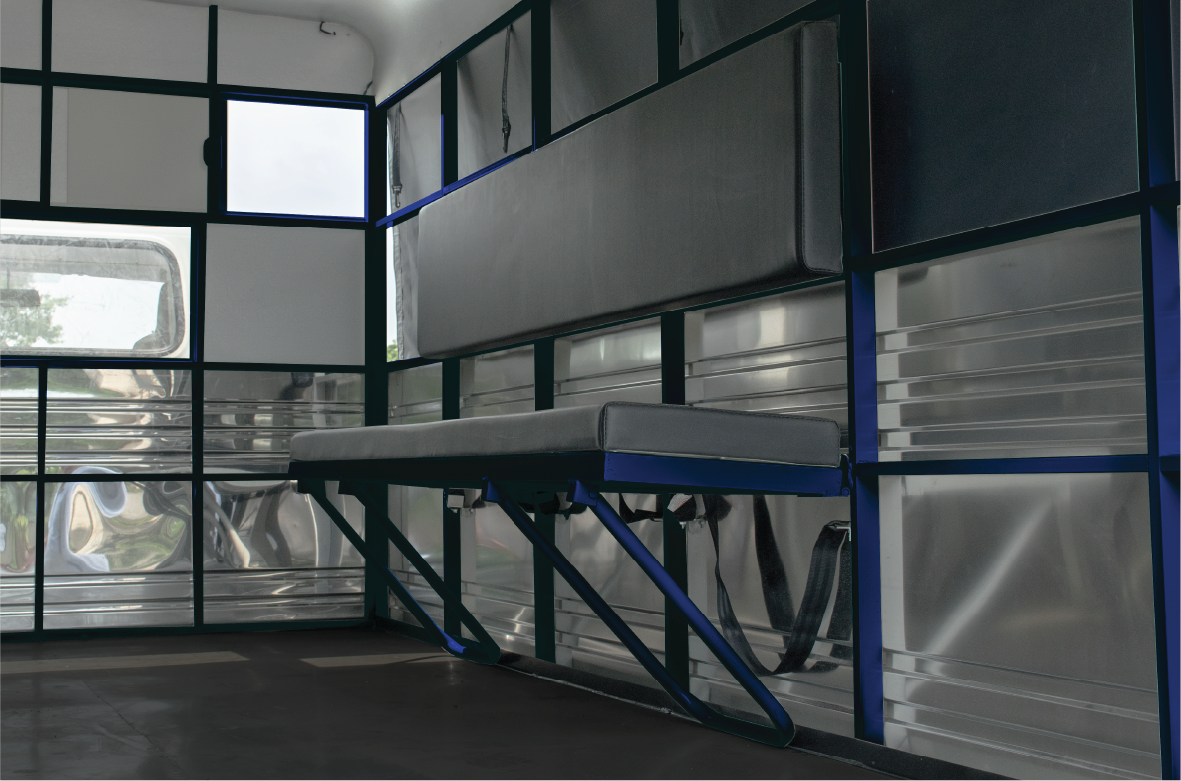

2 rear bench seats in the cargo area, with seat belts

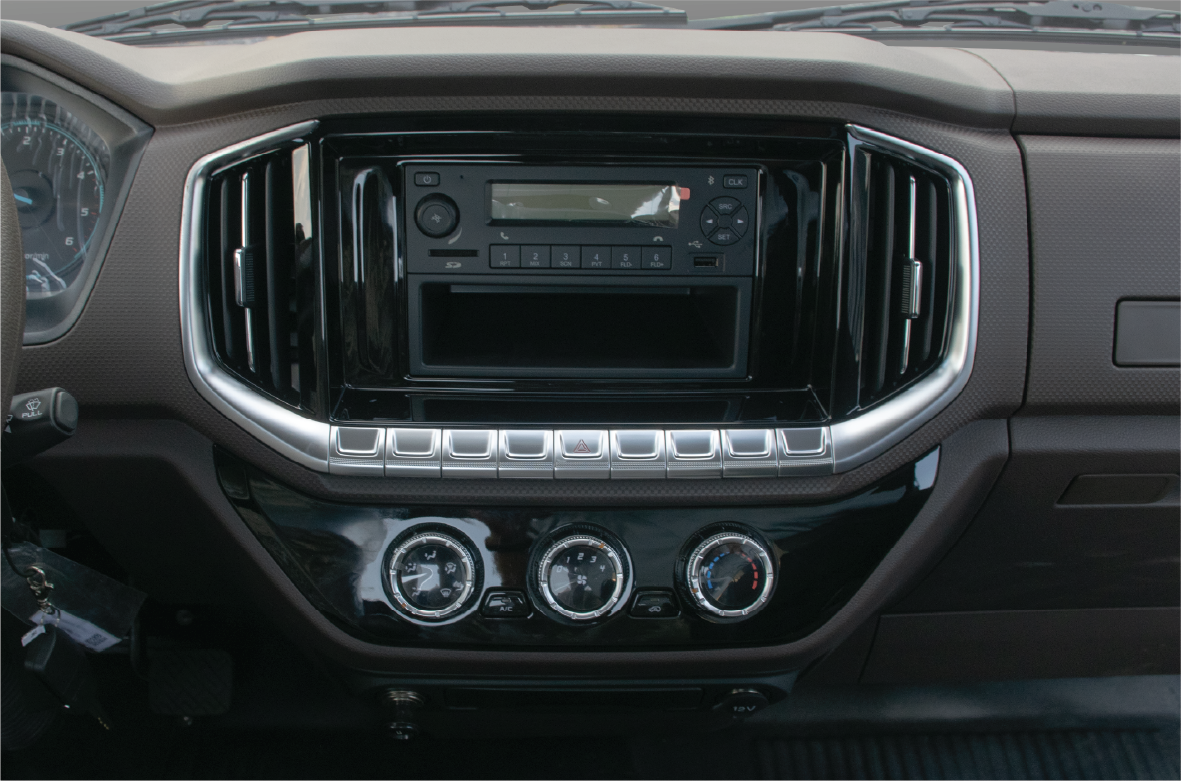

Air conditioning and entertainment system

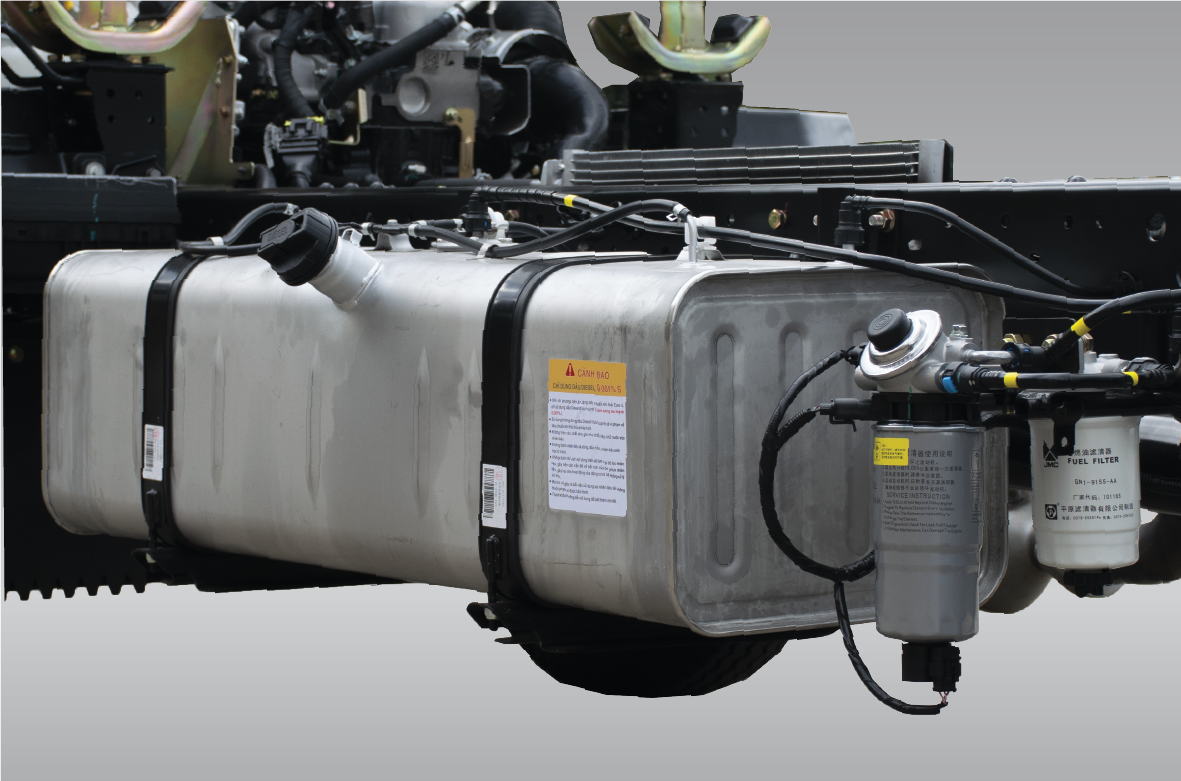

Stainless steel fuel tank

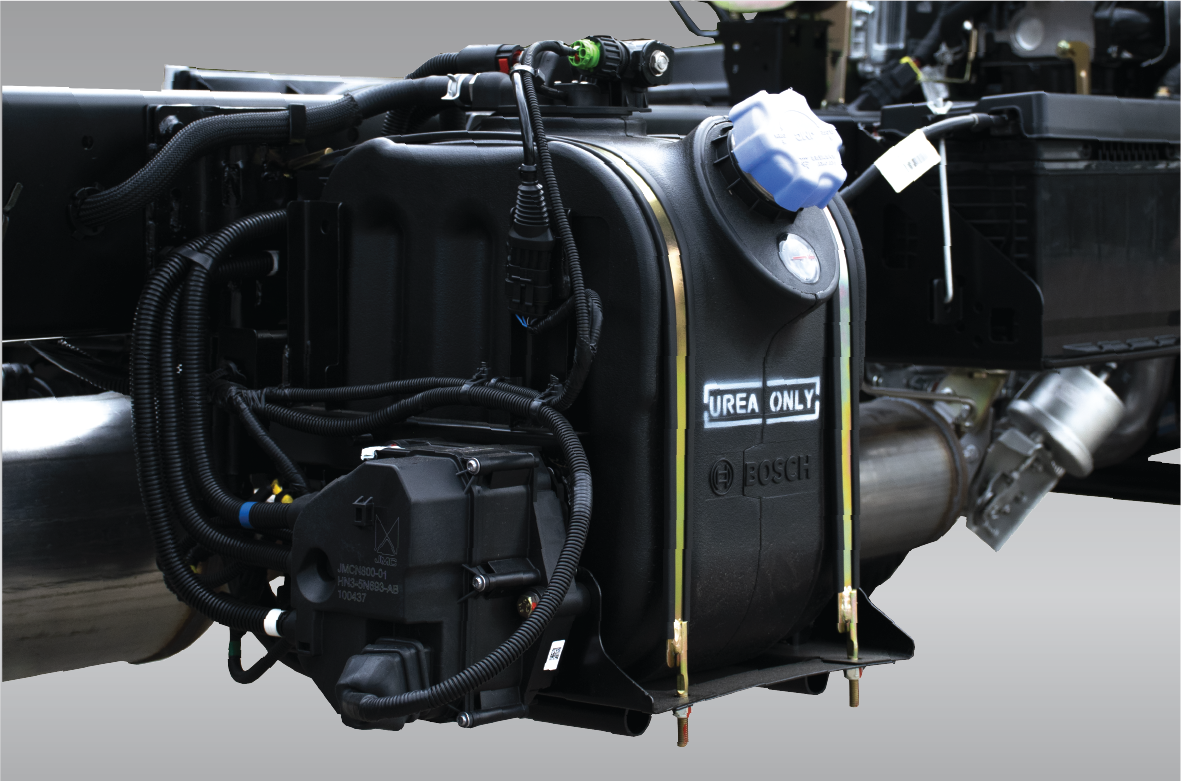

Urea tank

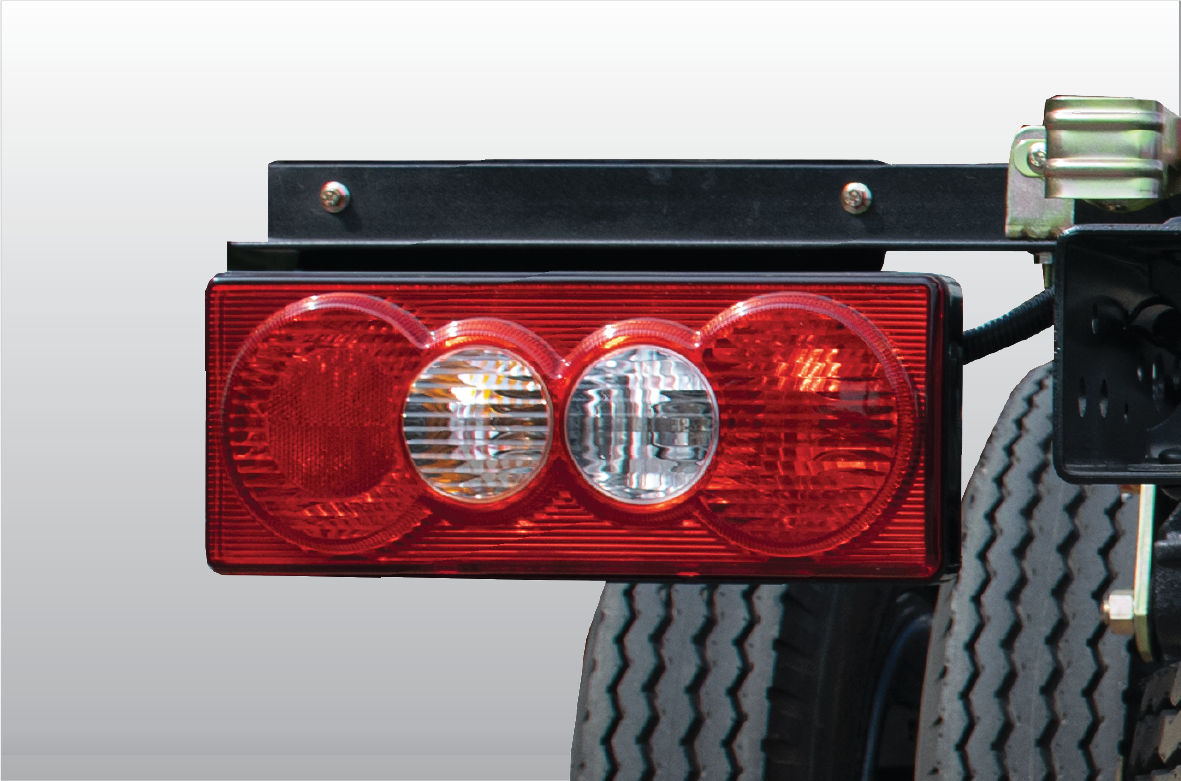

Modern rear lights

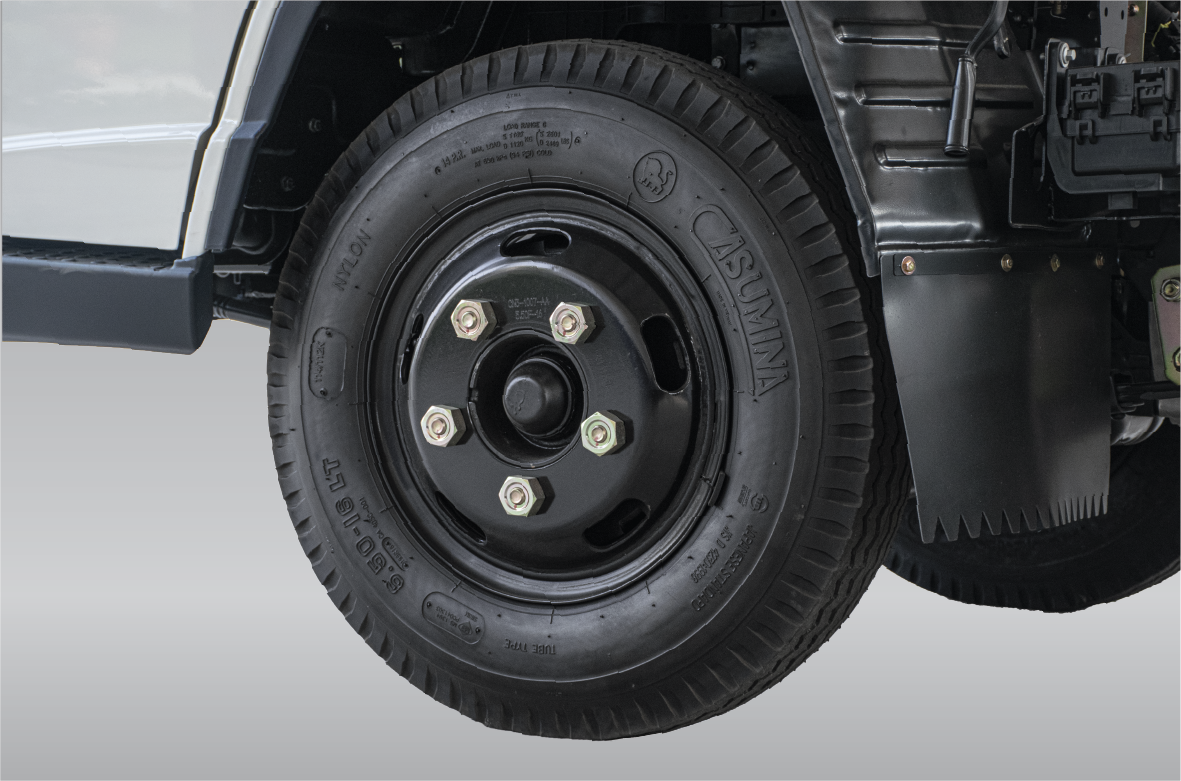

6.50 - 16/4x2R Synchronous Tire

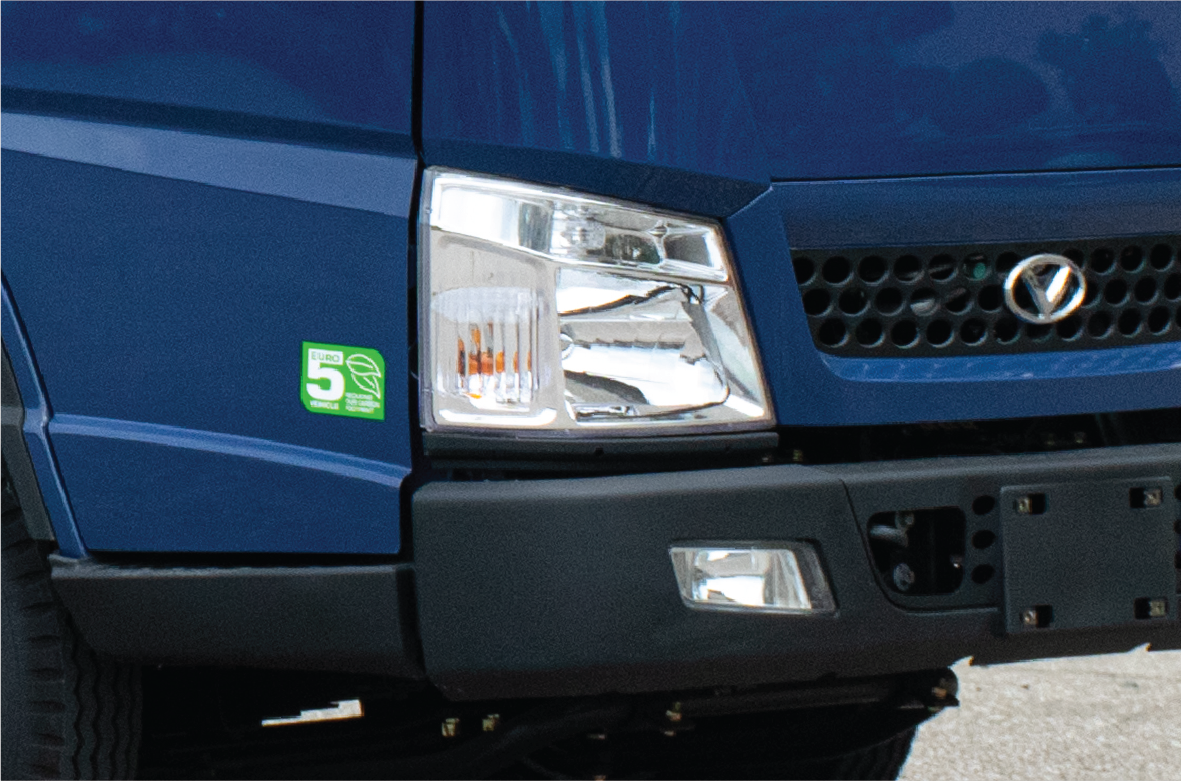

Halogen headlights, fog lights

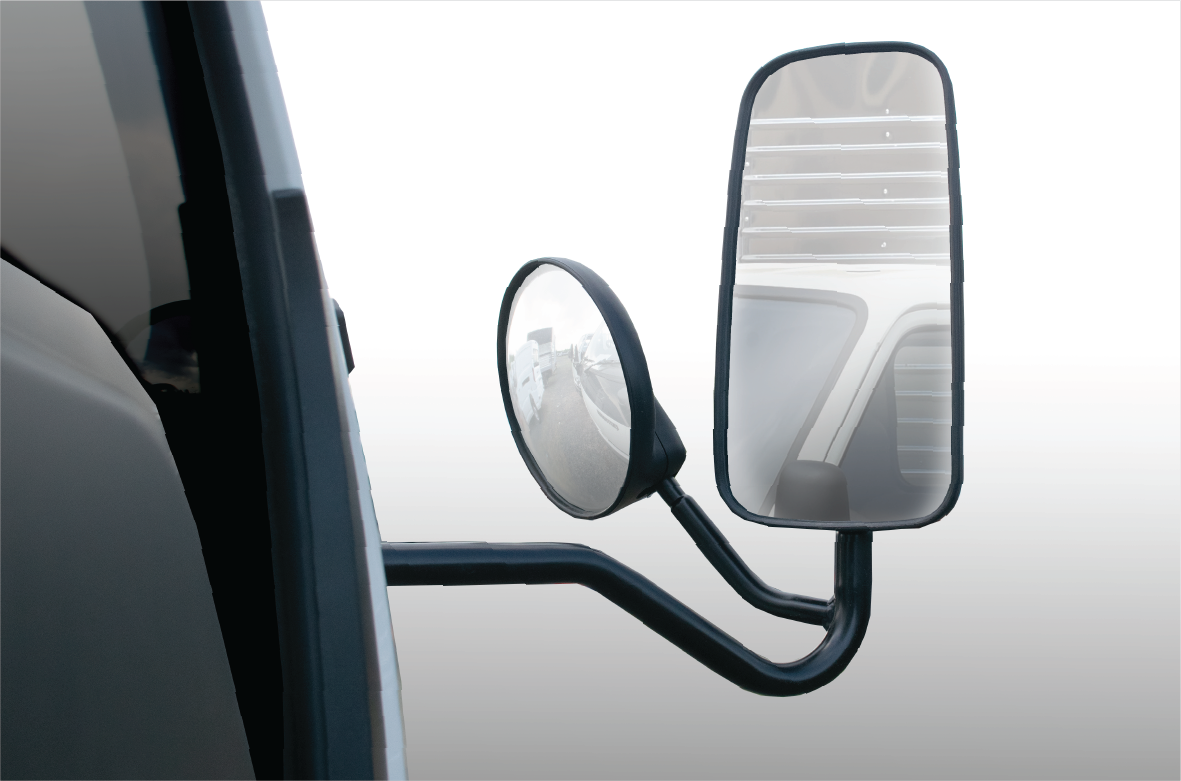

Rearview mirror, front view mirror

Furniture

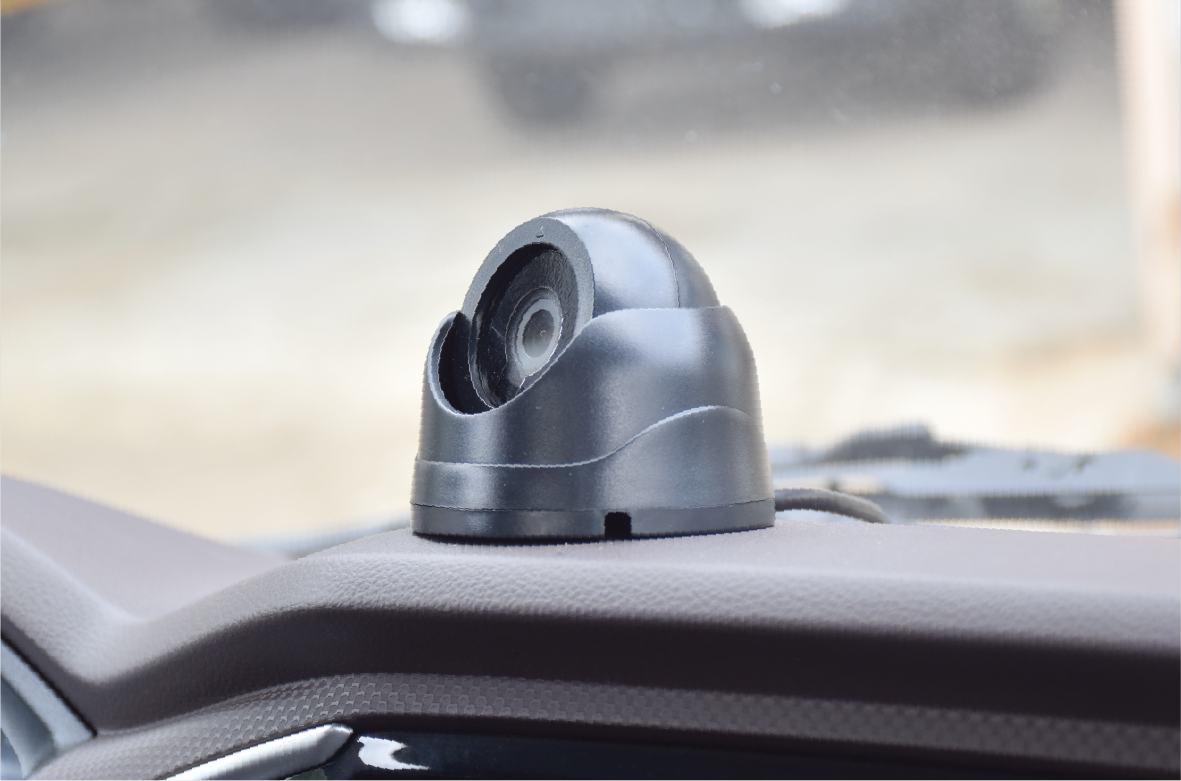

Integrated EcoTek camera system

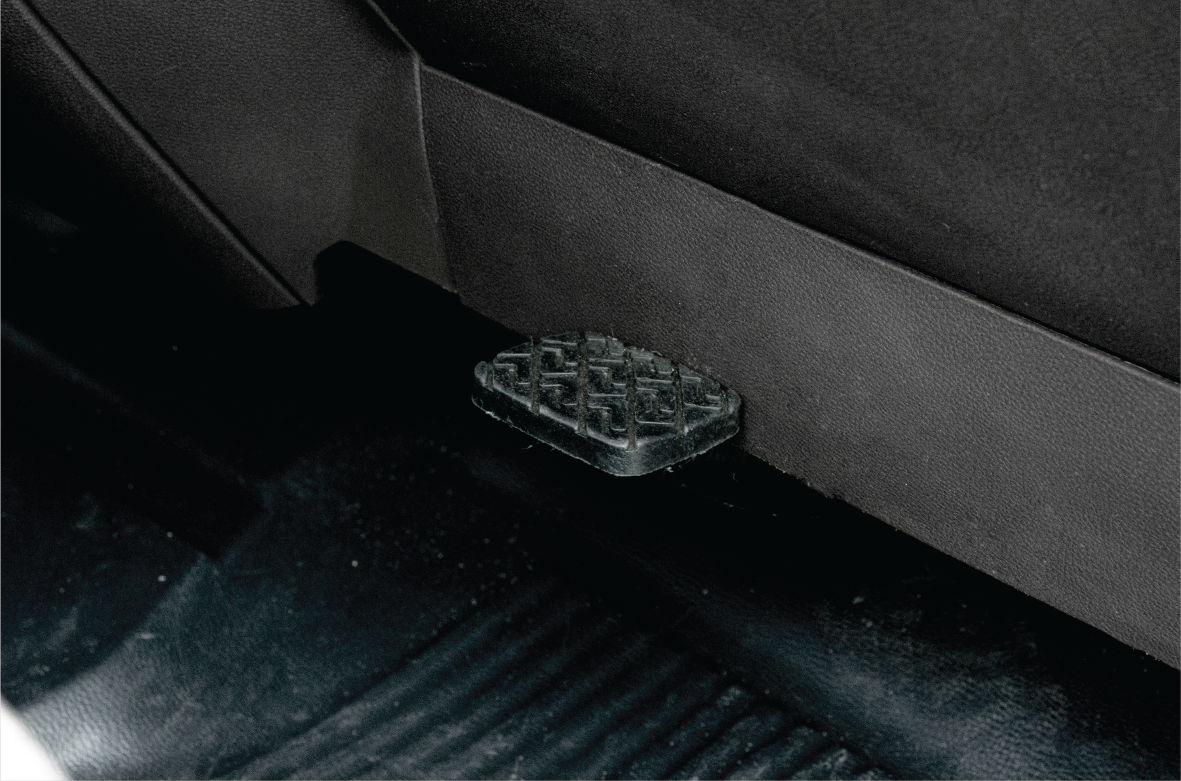

Dual control brake

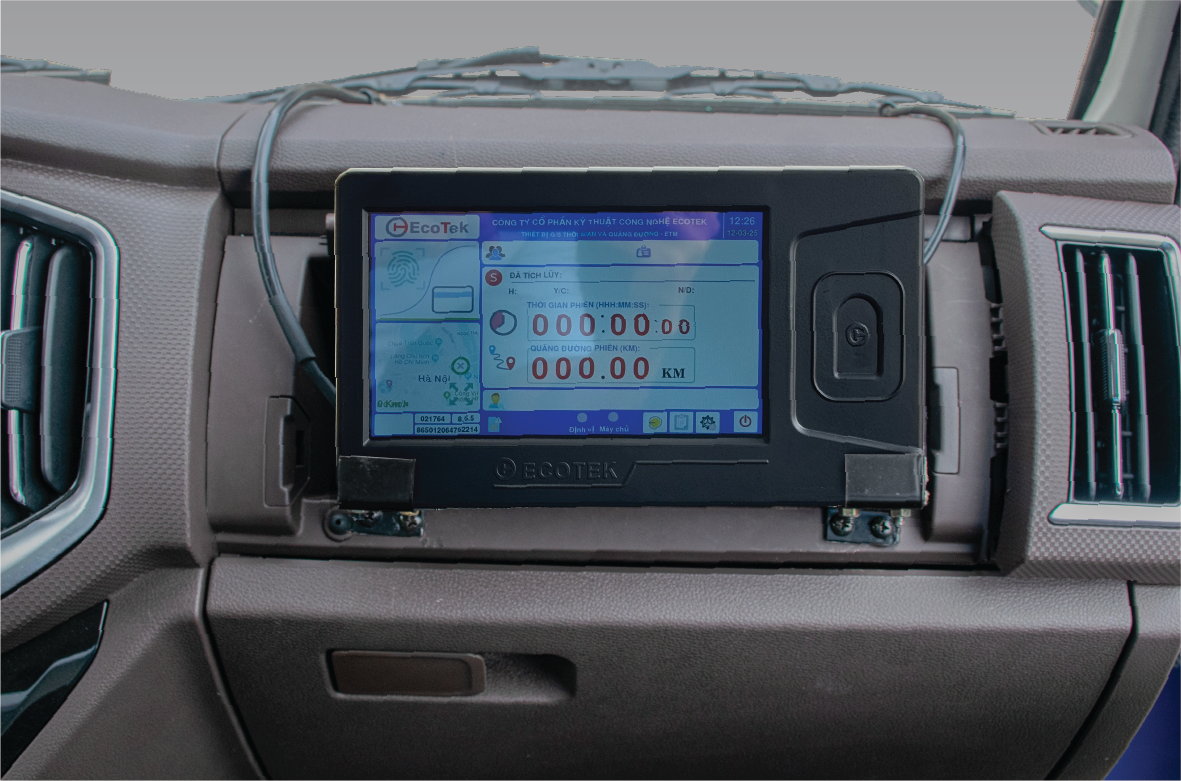

EcoTek DAT device

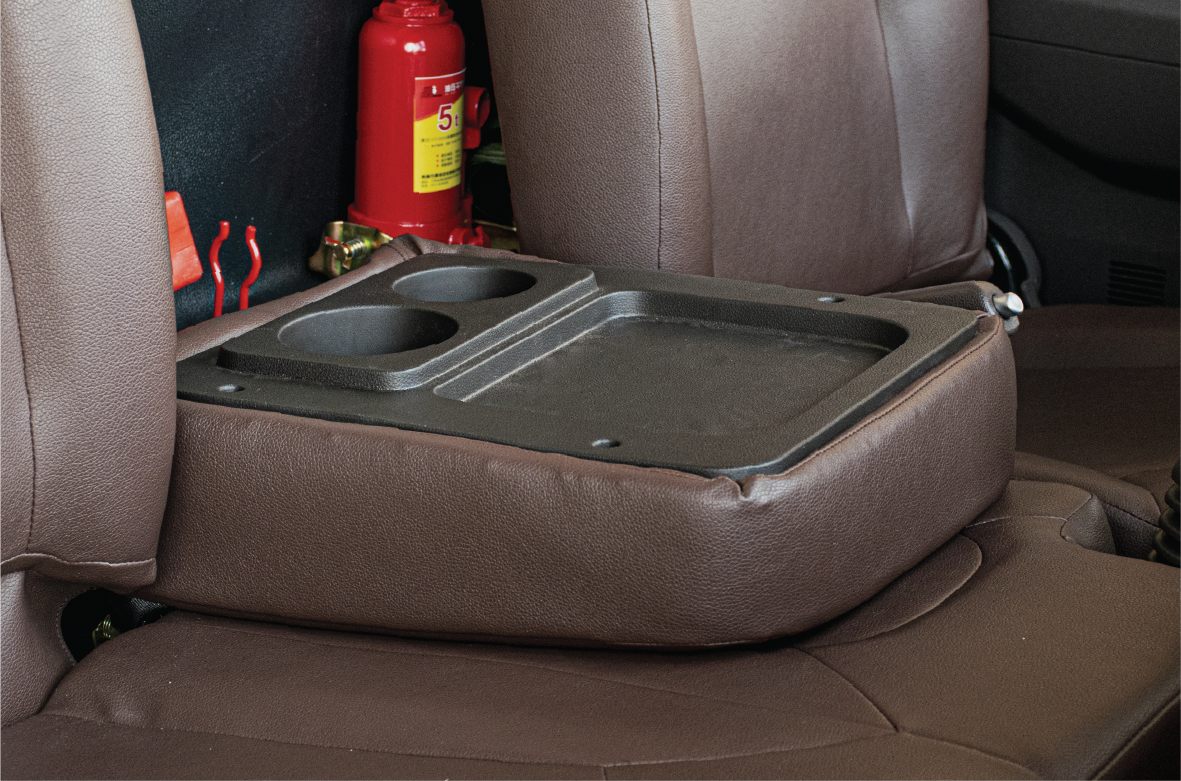

The middle seat folds down for storage

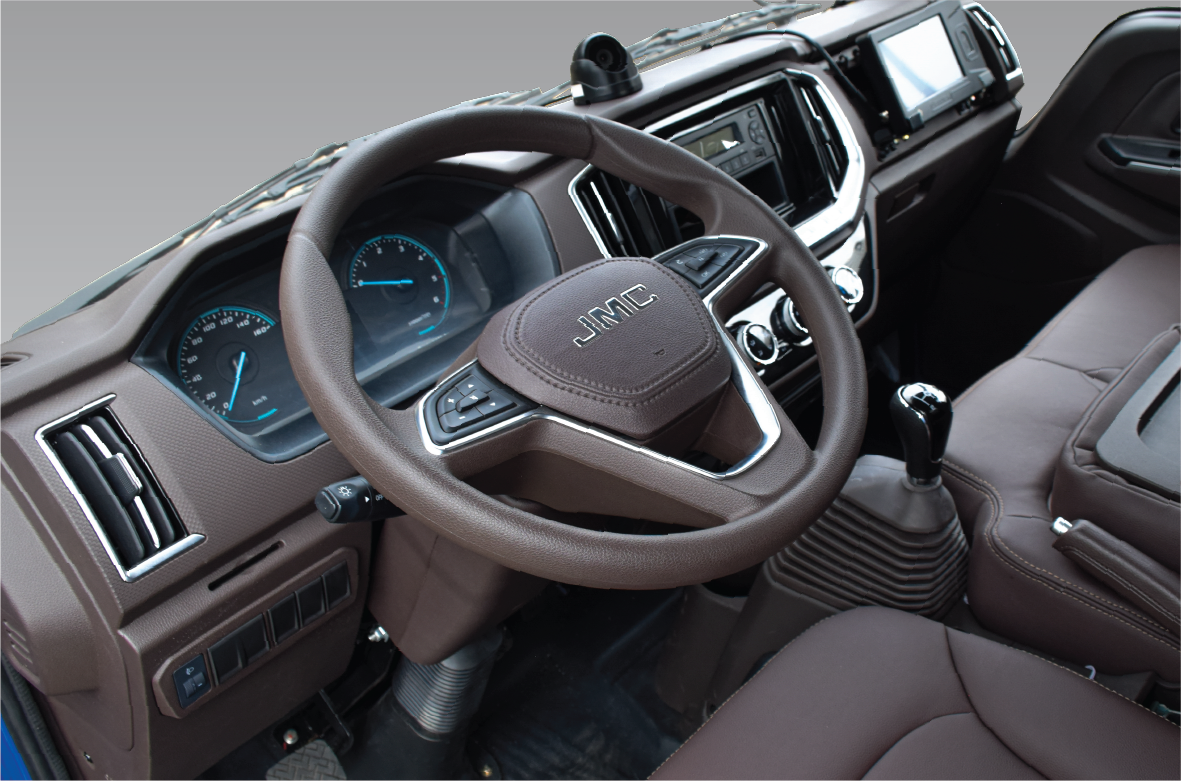

Luxurious truck interior, Nodding steering wheel

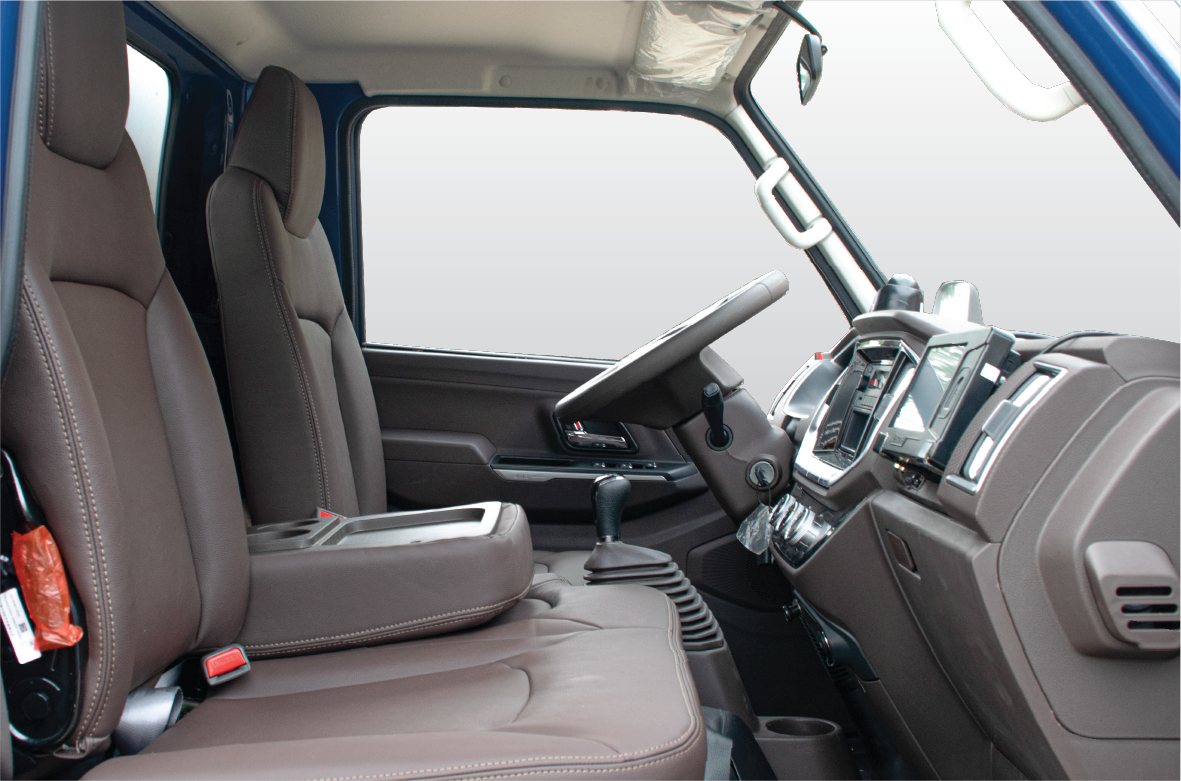

High-quality faux leather seats

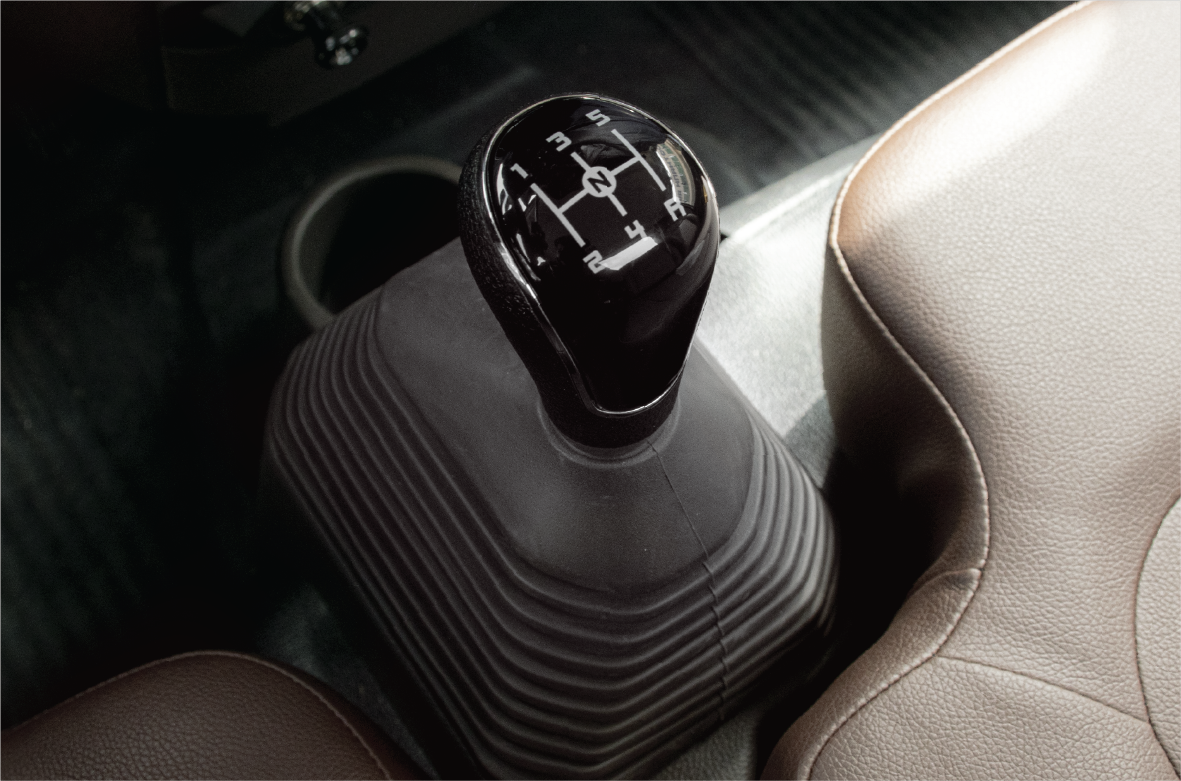

Manual transmission: 5 forward gears, 1 reverse gear

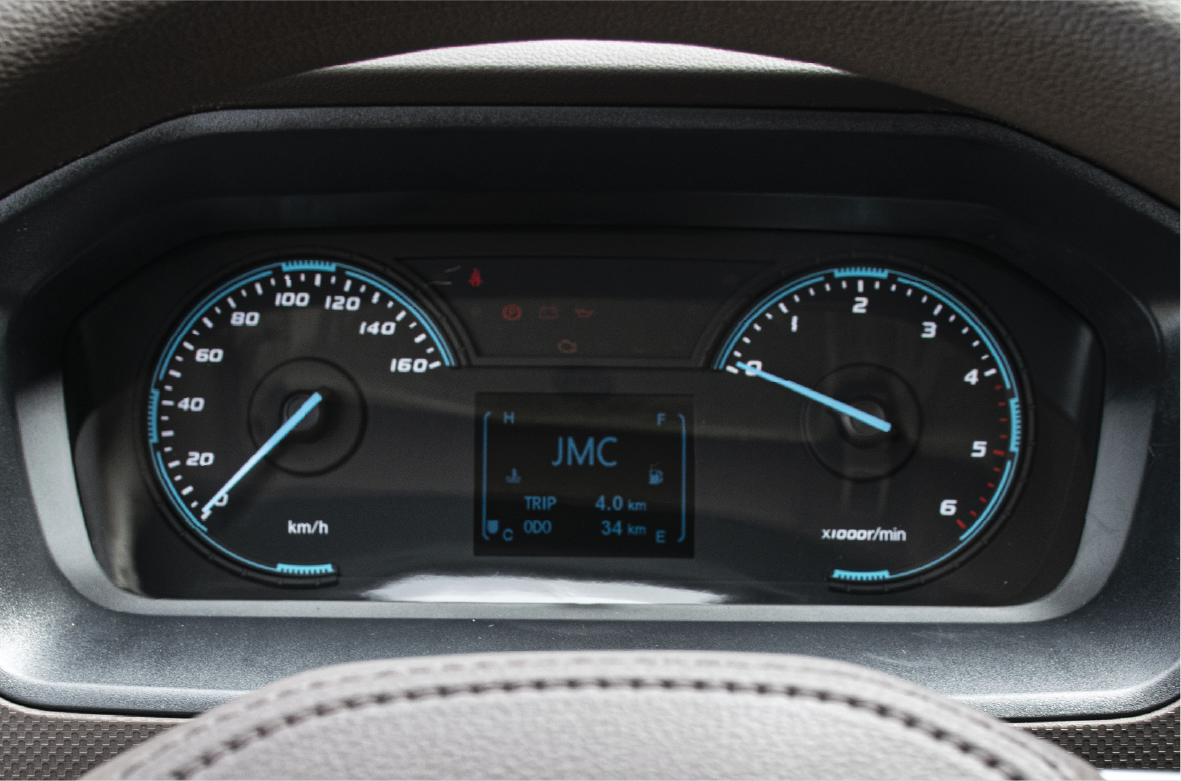

Display Screen

Air conditioning and entertainment system

Efficiency

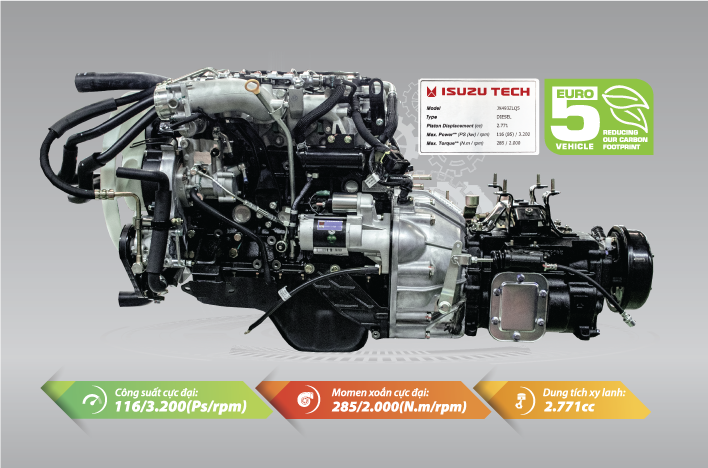

JX493ZLQ5 Engine (Euro 5) with Japanese technology and Gearbox

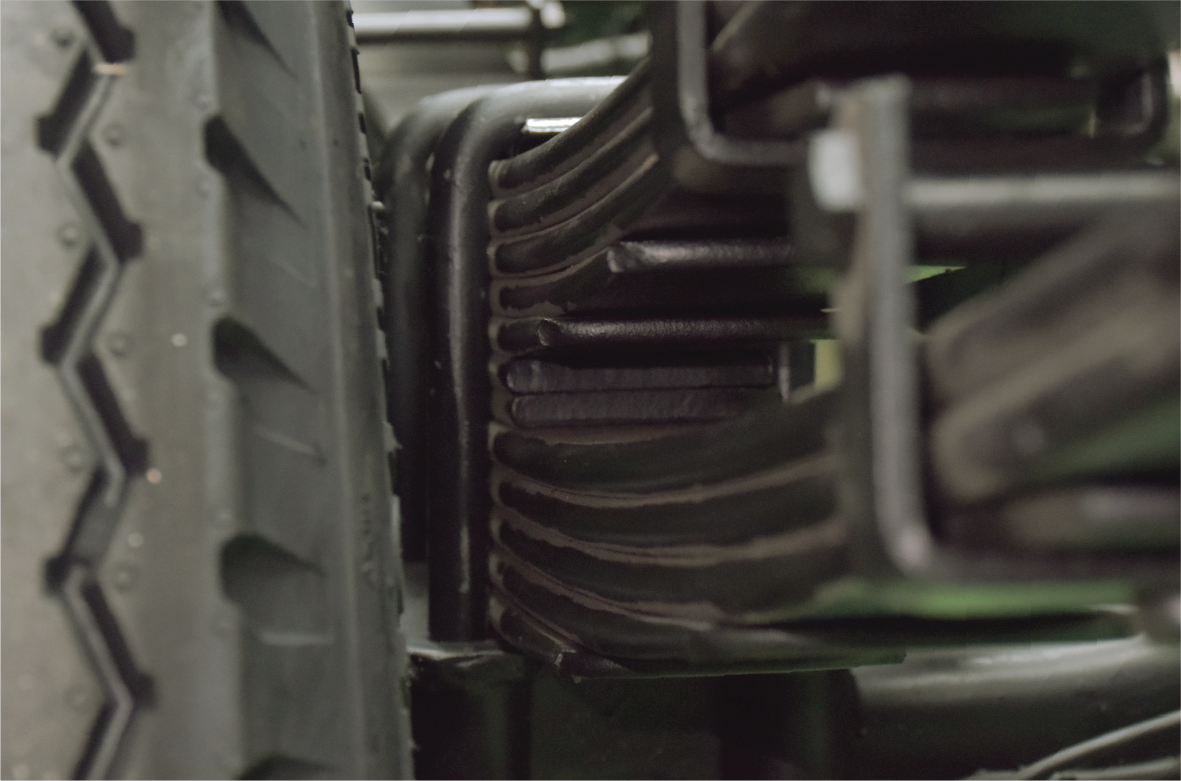

Enhanced leaf spring

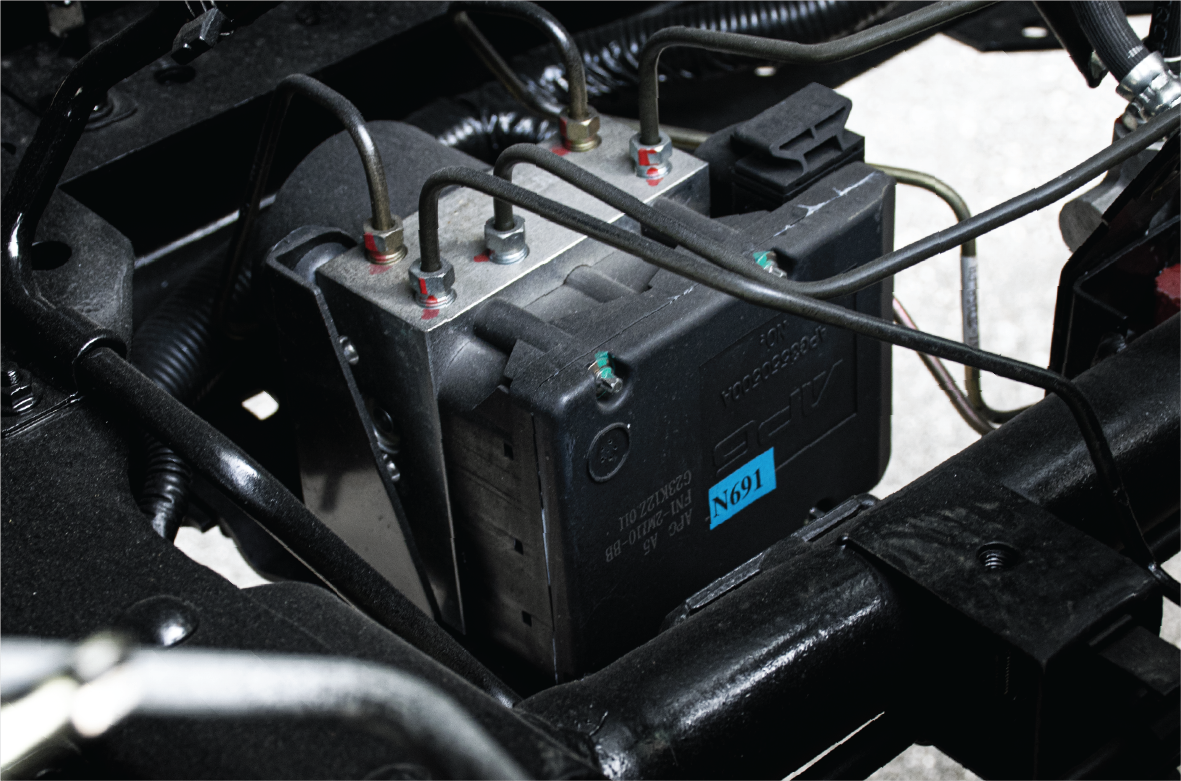

Anti-lock braking system (ABS)

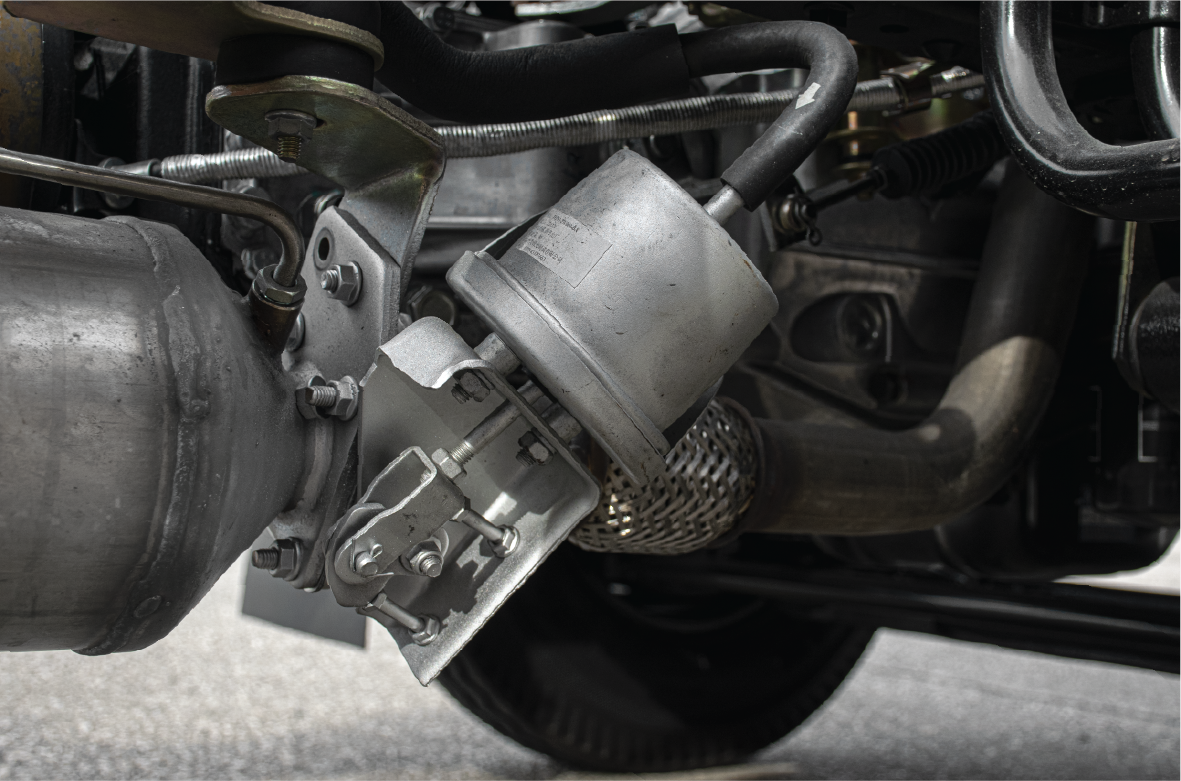

Exhaust brake

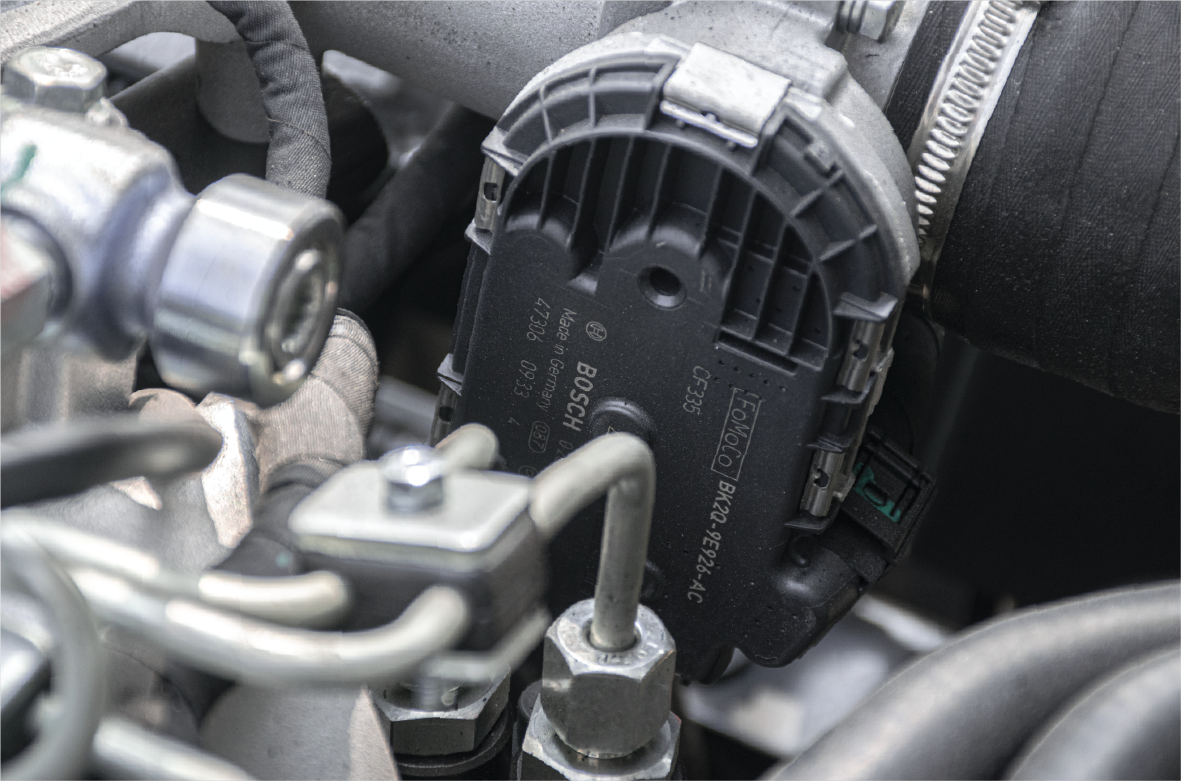

Bosch throttle position sensor (Germany)

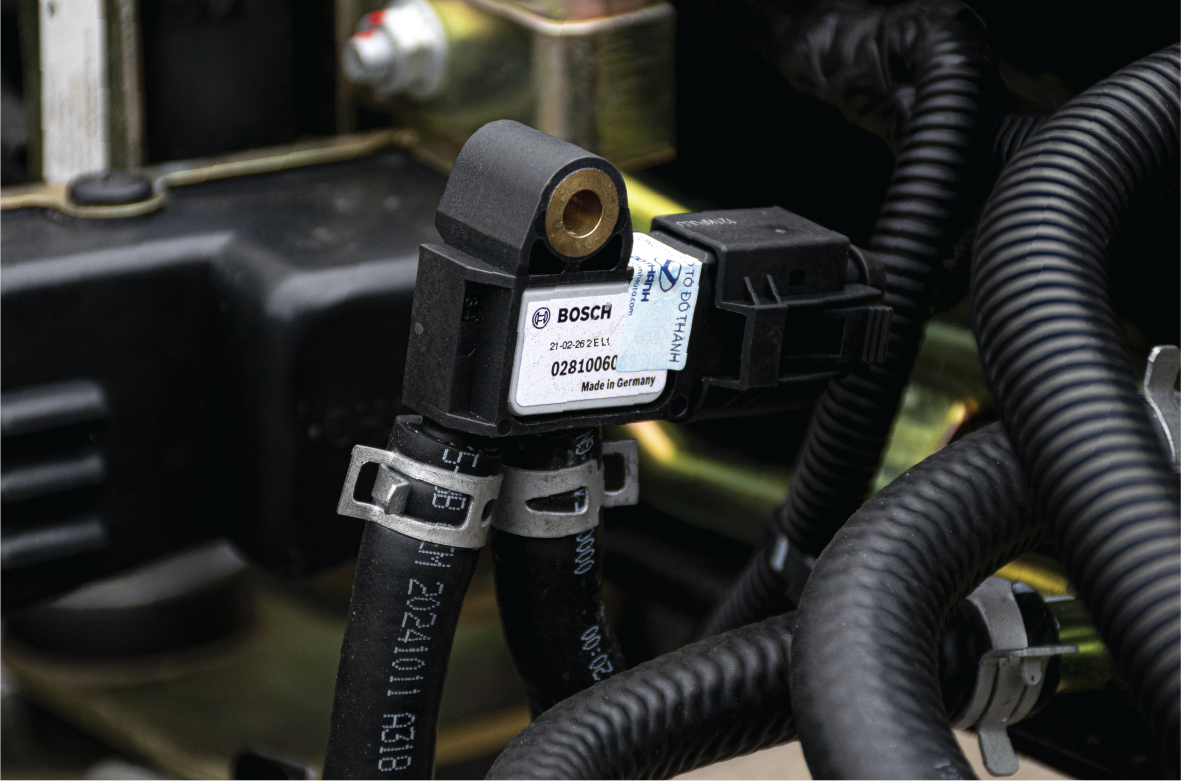

Bosch exhaust pressure sensor (Germany)

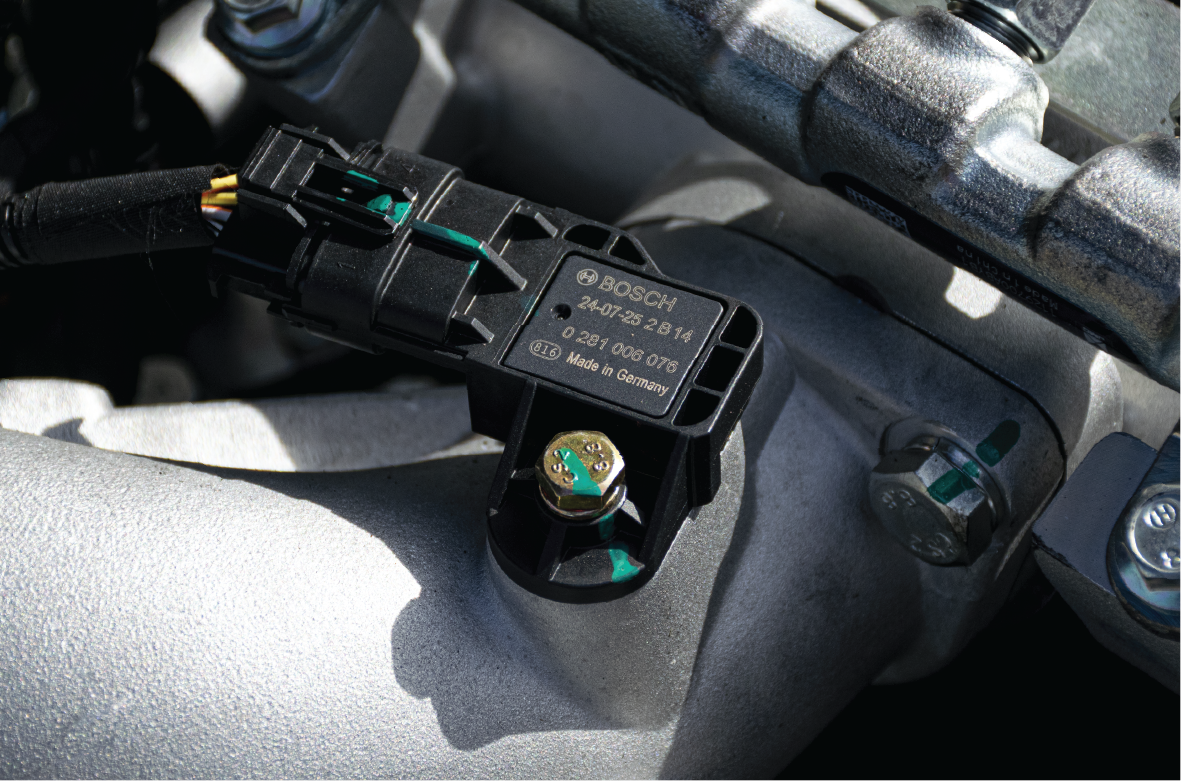

Bosch mass air flow sensor (Germany)

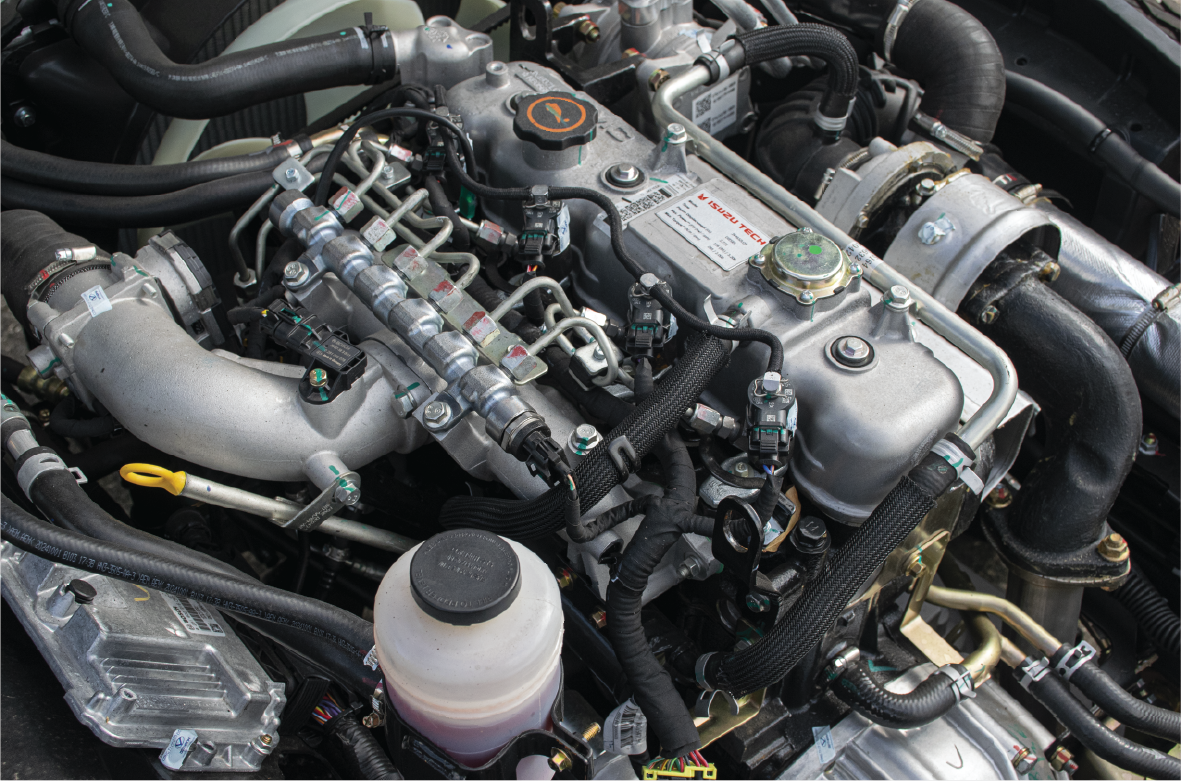

Electronic fuel injection control system, wiring harness from Bosch (Germany)

Technical specifications

MODEL	DOTHANH IZ50s - DRIVING TRAINING TRUCK
WEIGHT (kg)
Gross Vehicles	4.995
Pay load	2.300
Curb weight	2.500
Cabin/Rear seating	3 / 6
Fuel tank (L)	64
DIMENSION (mm)
Overall (LxWxH)	5.480 x 1.980 x 2.830
Dimensions of inner cargo body (LxWxH)	3.700 x 1.850 x 1.850
Wheel base	2.800
Front/Rear axle wheelbase	1.385 / 1.508
Ground clearance	300
ENGINE - TRANSMISSION
Model	JX493ZLQ5 (Euro 5)
Type	Diesel, 4 stroke, 4 cylinders in line, turbocharged, water-cooled
Displacement (cc)	2.771
Max power (PS/rpm)	116/3.200
Max torque (N.m/rpm)	285/2.000
Transmission	Mechanical, 5 forward gear + 1 reverse gear
Tire size/Wheels formula	6.50-16/4x2R
BRAKE SYSTEM
Brake	Drum brake, Hydraulic dual circuit with air assisted, Anti-lock braking system (ABS)
Parking Brake	Drum brake, mechanical drive, internal expanding acting on the transmission output shaft
Auxiliary Brake	Exhaust Brake, Dual control brake
OTHER SYSTEM
Clutch	Dry single plate with diaphragm hydraulic control
Steering system	Recirculating Ball, mechanical drive, with Integral Power Assisted By Oil
Suspension	Dependent, semi-elliptical leaf sping, hydraulic shock absorber
Generator	14V-110A
Battery	12V-90Ah
PERFORMANCE
Max gradability (%)	39,7
Max speed (km/h)	98,1
Smallest rotation radius (m)	5,8
